| Place of Origin: | Jiangsu |
| Brand Name: | SRI |
| Certification: | CE |
| Model Number: | ML-10/20/30/50/100 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 1000-1500USD/Set |
| Packaging Details: | Carrying case |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 200Sets/Month |
Application
Pull out resistance test of anchor bolt, anchor cable, steel bar, expansion bolt, chemical anchor bolt, anchoring parts, also can test the glass curtain wall field pull out resistance, it’s kind of common civil engineering testing area.
Features
1. High quality steel cast body, quickreset, overload protection, digital readout, Dust-proof, Peak value keep
2. Dust-proof system and high quality sealing ring with hydraulic cylinder guarantee long tooling life. Suitable for laboratory and field use.
3. Hydraulic cylinder:
10T-30T: manual reset;
50T-100T: Self-reset, can equip electric pump
Technical specifications
|
Model |
Oil cylinder center hole |
Oil tank travel |
Testing range |
weight |
Normal anchorage device |
rod |
Conversation connector |
|
ML-10T |
27mm |
60mm |
0-100kn |
6Kg |
Φ6-20 |
M18 |
M6-20 |
|
ML-20T |
34mm |
80mm |
0-200kn |
13Kg |
Φ6-25 |
M22 |
M6-24 |
|
ML-30T |
45mm |
80mm |
0-300kn |
15Kg |
Φ6-32 |
M24 |
M6-27 |
|
ML-50T |
60mm |
120mm |
0-500kn |
25Kg |
Φ6-32 |
M30 |
M6-39 |
|
ML-100T |
90mm |
150mm |
0-1000kn |
58Kg |
Φ6-40 |
M40 |
M6-39 |

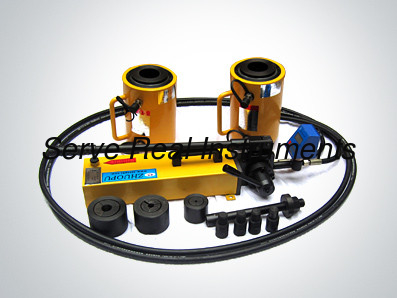

Standard configuration
1. Manual pump,
2. Hydraulic cylinder,
3. Digital pressure gauge,
4. 3m quick coupling high pressure oil pipe,

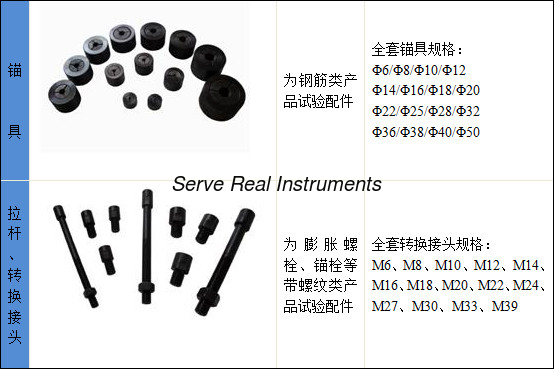

Optional parts
1. Anchorage device,
2. Conversation head pull rod),
3. Carrying case.
