Thermostat temperature performance and tooling life testing equipment

This test equipment is used to test the temperature characteristics and tooling life of thermostat products, it can be used to test the universal sudden jump thermostat, thermal protector, voltage holding thermostat, liquid expansion thermostat, fuse products. The test condition & data of each station is real time displayed on the screen , during testing process, if any one of the test station occurs abnormal status, system will trigger alarm and stop test, but it won’t effect the testing of other stations. All the test data can be exported via USB.

Technical specifications

Power supply: 220VAC/50Hz; 8KW
Temperature measurement: RT+10℃-250℃, ± 0.5℃ or 0.5％, resolution 0.1℃；
Test station: 50

Test data: action temperature, reset temperature, record the action temperature, action period, action times.
Tooling life test frequency: approx 1-6 time/ sec
life test counting: 1---999999, can be preset; period counting 0-999999 times
automatic judgment of connection: Switch/temperature abnormal sound/voice alarm output
Temperature measurement: K-type graduation line is used for temperature sampling, independent detection of each station
heating method: Heating aluminum plate/hot air gun
Test electricity range: 0-250V, 0-30A adjustable

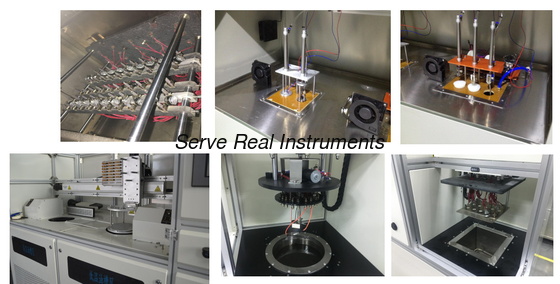

Test example
