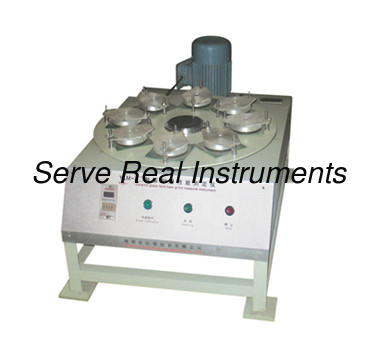

Ceramic test equipment Glazed Ceramic Tile Abrasion tester ISO 10545/7

Standards: ISO/DIS 10545/7-1996, GB/T3810.7-2016

This tester is mainly used for abrasion resistance testing of glazed ceramic tile, it’s kind of common ceramics testing equipment.

Technical Specifications

1. Sample size: 100×100mm; can test 3 or 8 samples at a same time
2. Distance between center and each sample center: 195mm, equal distance between two neighbouring clamps
3. Supporting plate rated rotation rate: 300±10% rpm
4. Eccentric distance: e=22.5mm
5. Clamp: inner diameter Ф83mm, inner height 25.5mm, test area about 54mm²
6. Motor power: 1.1kw
7. Power supply: AC 380V±10%, 50HZ±10%
