| Place of Origin: | Jiangsu |
| Brand Name: | SRI |
| Certification: | ISO9001-2008 |
| Model Number: | UTM-300/600/1000D |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 15000-20000USD |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 100sets/month |
| Oil Control: | Close Loop Control | Test Mode: | Full Automatic |
|---|---|---|---|
| Load Rate: | Controlled | Column Number: | 4 |
| Data Output: | Printing Output | Clamping Mode: | Automatic Hydraulic |
| Sea Port: | Shanghai | Warranty Period: | 12months |

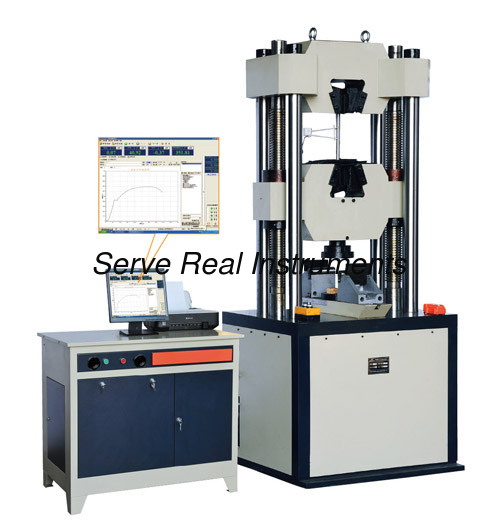

Description
It is suitable for tension, compression, bending, shearing, peeling, tearing and other tests by adding different test fixture for metal and non-metal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.
Standards compliance
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards, can be tailor-made
Main specifications
|
Model |
UTM-300D |
UTM－600D |
UTM-1000D |
UTM－1000G |
|
Max Test Load |
300kN |
600kN |
1000KN |
1000kN |
|
Total Testing Accuracy |
±0.5% |
|||
|
Effective test range |
2%-100%F.S |
|||
|
Load resolution |
1/500000 |
|||
|
Load indicating relative error |
±0.5%(±1%) |
|||
|
Stress rate control regulation range |
1MPa/s-60MPa/s |
|||
|
Stress rate control accuracy |
±1%(±2%) |
|||
|
deformation sampling resolution |
1/50000 |
|||
|
Deformation indicating value relative error |
±0.5%(±1%) |
|||
|
deformation measuring range |
1%-100%F.S |
|||
|
Strain rate control range |
0.00025/s-0.0025/s |
|||
|
Strain rate control accuracy |
±1%(±2%) |
|||
|
Displacement resolution(mm) |
0.001 |
|||
|
Displacement indicating value relative error |
±0.5% |
|||
|
Displacement rate control range |
0.00025/s-0.0025/s |
|||
|
Displacement rate control accuracy |
±0.5%(±1%) |
|||
|
Stress, strain, displacement control range |
0.3%-100%FS |
|||
|
stress, strain, displacement control accuracy |
±1% |
|||
|
Tension test space(mm) |
550 |
650 |
750 |
750 |
|
Flat sample max clamping width(mm) |
70 |
75 |
75 |
120 |
|
Flat sample clamping thickness(mm) |
0-15 |
0-15(15-30) |
0-40 |
|
|
Round sample clamping diameter(mm) |
φ6-26mm |
φ13-40mm |
φ13-40mm |
φ13-60mm |
|
Oil pump motor power(KW) |
1.1 |
1.1 |
1.1 |
1.5 |
|
Beam lifting motor power(KW) |
0.75 |
|||
|
Net weight(KG) |
1900 |
2600 |
3300 |
4000 |
