| Place of Origin: | Jiangsu |
| Brand Name: | SRI |
| Certification: | ISO 11058, GB/T 15789, JTG E50 T1141, SL/T 235-1999 |
| Model Number: | GT20 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 3500-4000USD/Set |
| Packaging Details: | meet standard packing requiments |
| Delivery Time: | 5-10 working days |
| Payment Terms: | TT |
| Supply Ability: | 200 set/month |
| Standards: | ISO 11058 | Function: | Geotextiles Vertical Permeability Test |
|---|
Description

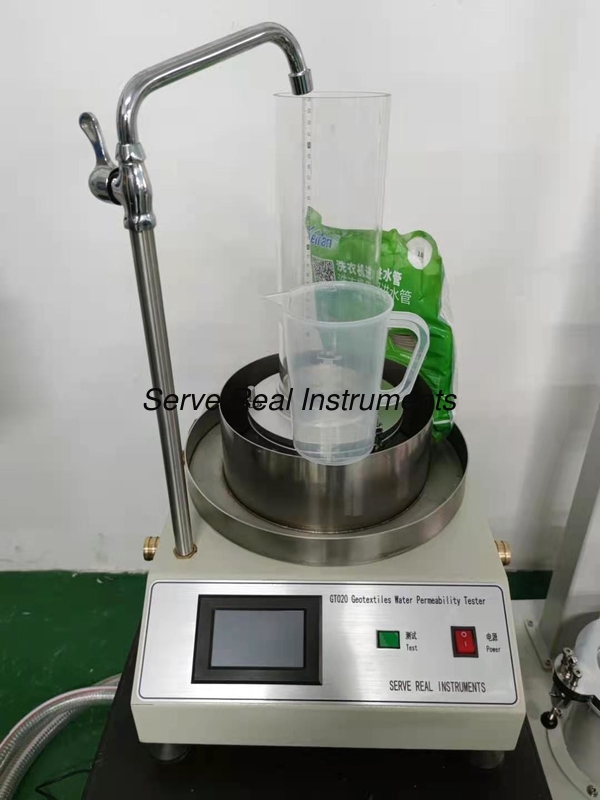

This tester is used to test the vertical permeability characteristics of geomembrane and other relevant products under constant head, it’s suitable for any type geotechnical cloth except those including membrane material.
Standards compliance
ISO 11058, GB/T 15789, JTG E50 T1141, SL/T 235-1999
Technical specifications
Clamp diameter: 50±0.5mm
Max water head: 300mmH2O
Applied sample thickness: ≤20mm
Time controller: 0～99.99s, resolution is 0.1s
Measuring cylinder: 1000ml± 10ml
Water indication resolution: 1mm
Thermometer range: 0~50.0℃, accuracy is 0.1℃
Power supply: AC220V 50Hz
Overall size: 400×500×850 mm(L×W×H)
Weight: 45Kg
