| Place of Origin: | China mainland |
| Brand Name: | SRI |
| Certification: | ISO 9001, CE |
| Model Number: | XXQ |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 3000-5000USD |
| Packaging Details: | polywood package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | Western Union, MoneyGram, T/T, L/C, D/P, D/A |
| Supply Ability: | 50sets/month |

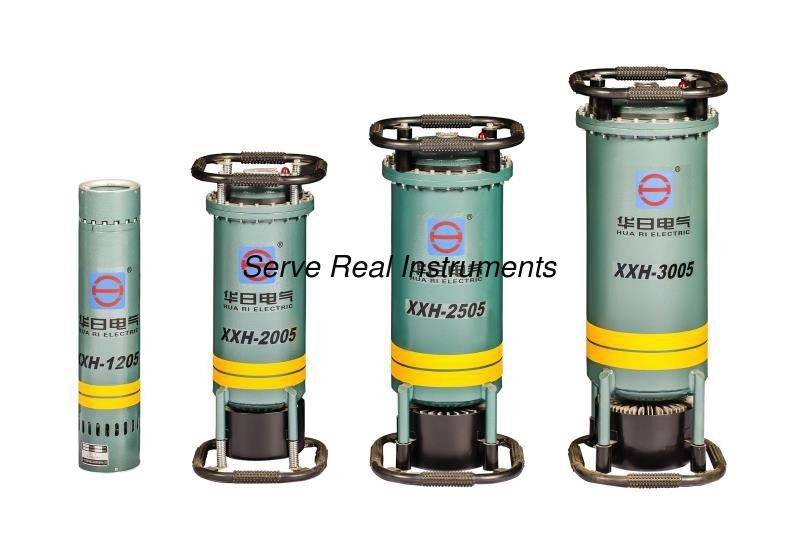

Portable Panoramic X Ray Flaw Detection machine
The X-Ray flaw detector is comprised of X-Ray generator and controller, features easy and safe in operation, this XXG model X ray flaw detector can give panoramic image, uses glass tube.
The X-Ray flaw detector uses the penetration and attenuation characteristics of X-Ray to detect the flaw of different objects, it can detect metal and nonmetal materials, it mainly detects the volume defects such as stomata, slag, Incomplete welding etc.
Technical specifications
| Model | XXH-120 | XXH-160 | XXH-200 | XXH-250 | |
| Voltage regulation range(kv) | 40-120 | 70-160 | 120-200 | 150-250 | |
| Tube current(ma) | 3 | 5 | 5 | 5 | |
Focus size(mm) | 1.0×3.5 | 1.0×3.5 | 1.0×3.5 | 1.0×2.5 | |
Focus size(mm)IEC336 | 5.5 | 5.5 | 5.5 | 5 | |
| Work mode | 1:1 | 1:1 | 1:1 | 1:1 | |
| Input power(kva) | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.6 | |
Radiation angle | 30×360 | 30×360 | 30×360 | 30×360 | |
Radiation angle | 40×360 | 40×360 | 40×360 | 40×360 | |
| Cooling way | forced air cooling | forced air cooling | forced air cooling | forced air cooling | |
| Penetration thickness(mm) | 7 | 12 | 24 | 34 | |
| Generator size(mm) | Ø130×560 | Ø 180×590 | 285×285×650 | 330×330×750 | |
| Generator weight(kg) | 8 | 16 | 23 | 34 | |
| Controller weight(kg) | 12 | 12 | 12 | 12 | |
| Model | XXH-300 | XXH-320 | XXH-200A | XXH-250A | XXH-300A |
| Voltage regulation range(kv) | 170-300 | 170-320 | 120-200 | 150-250 | 170-300 |
| Tube current(ma) | 5 | 5 | 5 | 5 | 5 |
Focus size(mm) | 1.0×3.5 | ———— | 1.0×3.5 | 1.0×2.5 | 1.0×3.5 |
Focus size(mm)IEC336 | 5 | 5 | ———— | 5 | ———— |
| Work mode | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Input power(kva) | ≥3.6 | ≥3.6 | ≥2.5 | ≥3.6 | ≥3.6 |
Radiation angle | 30×360 | 30×360 | 25×360 | 25×360 | 25×360 |
Radiation angle | 40×360 | 40×360 | ———— | 25×360 | ———— |
| Cooling way | forced air cooling | forced air cooling | forced air cooling | forced air cooling | forced air cooling |
| Penetration thickness(mm) | 40 | 50 | 27 | 37 | 47 |
| Generator size(mm) | 330×330×840 | 330×330×820 | 285×285×650 | 300×300×750 | 330×330×840 |
| Generator weight(kg) | 40 | 43 | 23 | 34 | 40 |
| Controller weight(kg) | 12 | 12 | 12 | 12 | 12 |
