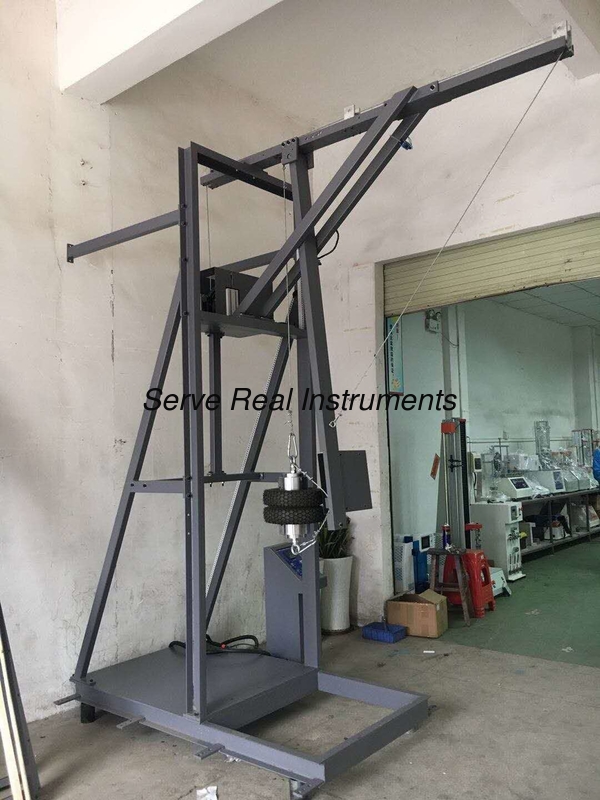

BS EN 12600 Dual tyre glass impact test equipment, Construction glass impact test
Standard: BS EN 12600
This equipment is used to test the impact strength of construction glass material under BS EN 12600 standard, it uses a dual tyre type impactor to impact on the glass to study the impact strength of construction glass.
The equipment is comprised of frame, sample holder, impactor body, lifting arm, height measuring unit, controller
| Impactor height | 190,450,1200mm |
| Impactor | dual tyre with metal cylinder in center |
| Controller | Button |
| Main frame | 100mm channel steel |
| Swing arm radius | 1524mm |
| Impactor weight | 50kg±0.1kg |
| Impactor pressure | 350±20kpa |
| Impactor tyre | 3.50-R8 4PR, round sectional and flat longitudinal tyre surface(see fig. 1) |
| Impact height difference | 0-30mm |
| Glass sample dimension | w(1938±2*h(876±2mm) |
| Sample holding frame internal dimension | H1910±5xw847±5mm |
| Rubber strip dimension | Width:20±2mm,thickness:10±1mm hardness: 60±5irhd |
| Steel strand dia. | 5mm±0.1mm |
| Steel strand rope length | ≥1524mm |
| Height measuring unit | Height rod |
| Tyre tripping mode | Automatic |
| Fixing mode | Foundation bolt fixing |
| Machine overall dimension | W1200±5×l1800±5×h2900±5mm |
| Net weight | 680kg |
| Power supply | Ac240v,50hz, >2m power cable |
| Frame material | Stainless steel+wood |
