| Place of Origin: | China mainland |
| Brand Name: | SRI |
| Certification: | ISO 9001 |
| Model Number: | CPTV |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 30000USD |
| Packaging Details: | wooden case |
| Delivery Time: | 15-30 WORKING DAYS |
| Supply Ability: | 20SETS/MONTH |
| Power: | Hydraulic & Diesel | Application: | Geology Survey |
|---|

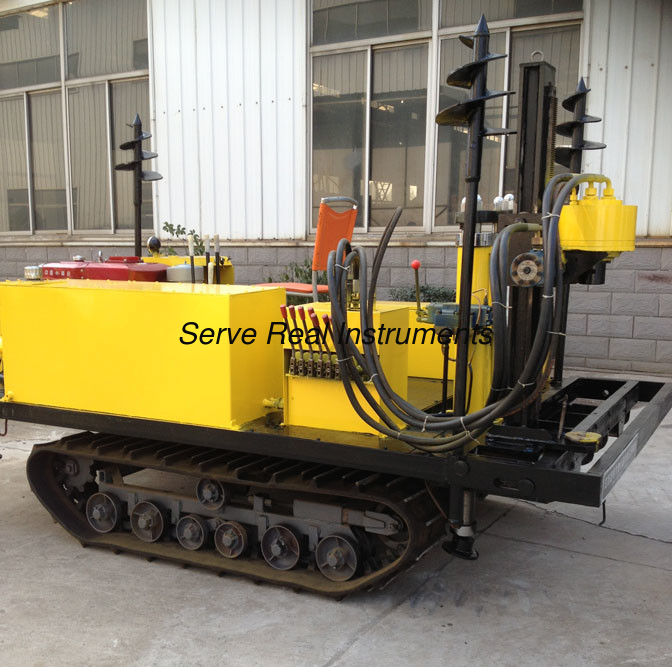

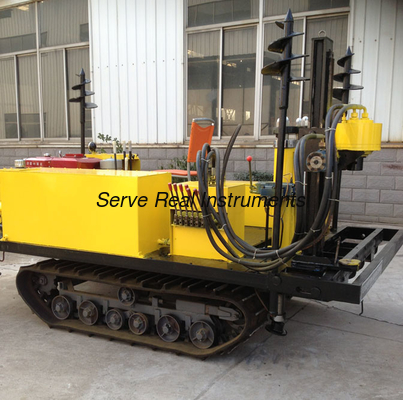

This equipment is used for static cone penetration test (CPT) in geology survey.
Features
Newly design, practical in use, Labor saving, less working strength, less cost
Applicable to be operated in beach, Sandy land, Paddy field, and other complicated Geological environment.
Advanced hydraulic system, compact size, easy installation, less pressure loss

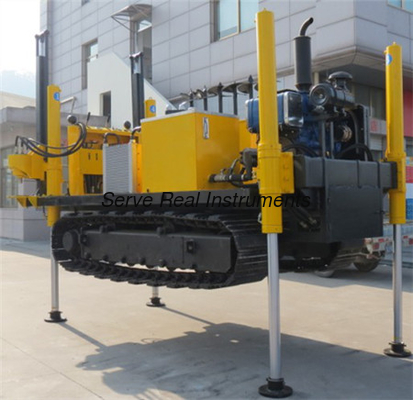

Automatic hydraulic two sets of anchoring units and 4 hydraulic legs
Independent oil control, easier operation, stable and reliable.
Single cylinder power system, independent power for static penetration and crawler walking, less oil consumption, easy operation
This equipment is an ideal equipment for static penetration test, it also can perform Pore pressure static test, DMT test, vane shear test, press-in wave speed test
4pcs automatic hydraulic supporting foot or heightening 4pcs automatic hydraulic ultra-long supporting leg.
power optional
Hydraulic power optional: 5T, 10T, 15T, 20T, 25T; or combined type: 5T+10T, 15T, 20T,25T
Technical specifications
1. Hydraulic static penetration test unit
| Model | CPTV-L6-5T | CPTV -L6-10T | CPTV -L6-15T | CPTV -L6-20T | CPTV -L6-25T |
| Penetration load | 50KN | 100KN | 150KN | 200KN | 250KN |
| Pulling force | 60KN | 140KN | 180KN | 240KN | 300KN |
| Penetration rate | 1.2m/min | 1.2m/min | 1.2m± 0.3m | 1.2m± 0.3m /min | 1.2m± 0.3m /min |
| Pulling speed | 3-4m/min | 3-4m/min | 3-4m/min | 3-4m/min | 3-4m/min |
| Piston rod | Φ 30 | Φ 40 | Φ 50 | Φ 50 | Φ 50 |
| Main unit weight | 100kg | 160kg | 180kg | 200kg | 200kg |
| Oil cylinder diameter | Φ 60 | Φ 80 | Φ 90 | Φ 100 | Φ 110 |
2. Components
| 1. Diesel engine |
| Crawler walking 12.1kw, penetration: 17kw |
| 2. Walking unit |
| Walking speed: 0-13km/h |
| Climbing: ≤25° |
| Gearbox: dedicated gearbox |
| Chain: rubber chain, width 350mm, P90, gear number 46 |
| 3. Hydraulic system |
| Gear pump: CBF-F425-AEP |
| Flow: 25(L/min) |
| Pressure: 20mpa |
| Rotation speed: 2000r/min |
| Multi-way valve: ZSI-L15E-w-3Y, ZSI-L10E-w-40 |
| 4. Oil tank volume: ≥60L |
| 5. Working temperature: -20℃~40℃ |
| 6. Engine water temperature: ＜90℃ |
| 7. Hydraulic oil temperature: ＜65℃ |
| 8. Lifting oil cylinder: Dia. 100mm |
| 9. Stroke: 500mm(have to be tailor made if longer) |
| 10. Supporting capacity: 90KN |
| 11. Jacking capacity: 90KN |
| 12. Anchoring motor: QJM12-1.25, pressure: 16 MPa, rotation speed: 4-160rpm |
| 13. Machine overall size: L3000mm× W1900mm× H2250mm |
