Coatings Pull Off Adhesion Tester ISO 4624, ASTM D 4541, ASTM D7234

Standards: ISO 4624, ASTM D 4541, ASTM D7234

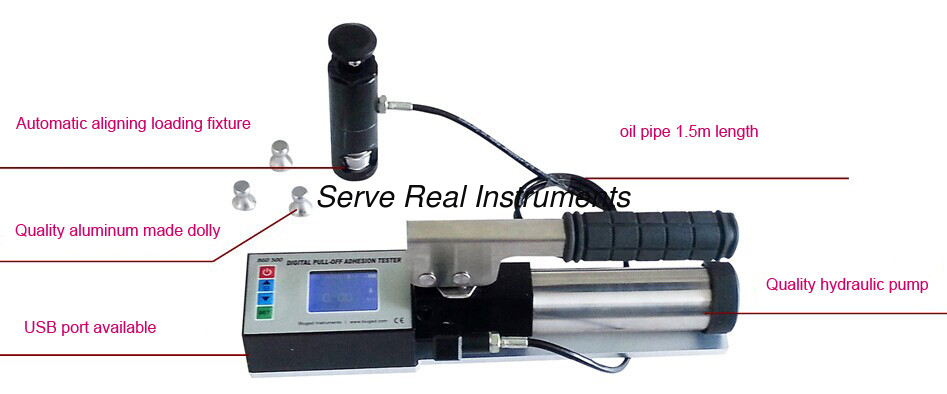

This pull off adhesion tester can measure the adhesion strength of coatings to metal, concrete and other materials, self-positioning characteristics brought a new way for measurement of adhesion strength. It uses hydraulic system to split a certain diameter coating thus to measure the coating adhesion, the LCD display indicates the adhesion force value with the unit MPa or KN.

Features

Portable handheld devices, can be used in any place, without external power supply, can be used in laboratory, and can be used in the field.

large lcd digital display and easy to read

Select the spindle, measuring unit and, automatic calculation as per spindle size

Portable carry box, alloy and stainless steel made main body, rainproof, dustproof, prevent collision.

High quality hydraulic pump can be applied to any occasion, warranty for three years.

Pressure and display systems have been calibrated by standard dynamometer, precision control within + / - 1% (full scale).

Self-positioning spindles applicable to both smooth and rough surface with same accuracy

High-grade industrial pressure sensor to ensure continuous and high precision.

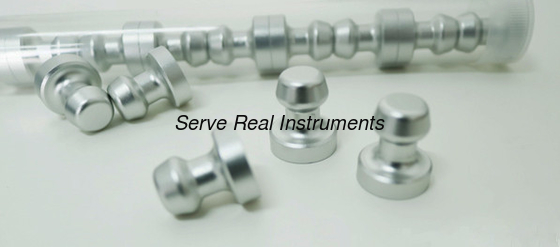

Optional 10 mm, 14 mm, 20 and 50 mm mm spindle.

LCD display, can choose MPa or KN unit.

Technical parameters

Strength measurement range: 0 to 10 KN

Strength value measurement range:

10 mm spindle 0-127.38 mpa

14 mm spindle 0-64.99 mpa

20 mm spindle 0-31.84 mpa

50 mm spindle 0-5.09 mpa

Display resolution: 0.001 KN / 0.001 mpa

Piston stroke: 10 mm

Indication error: <=±1% F.S

Main body Net weight: 2.8 Kg

Carrying case size: 340mm*305mm*190mm

Gross weight: 8kg
