Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | China mainland |
| Brand Name: | SRI |
| Certification: | ISO |
| Model Number: | CW-12 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 1000-2000USD |
| Packaging Details: | carton case |
| Delivery Time: | 5-7 working days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100sets/month |
| Sales Area: | Global | Display Menu: | English |
|---|---|---|---|
| Transportation: | Air, Sea, Land | Warranty Period: | 12 Months |
Description

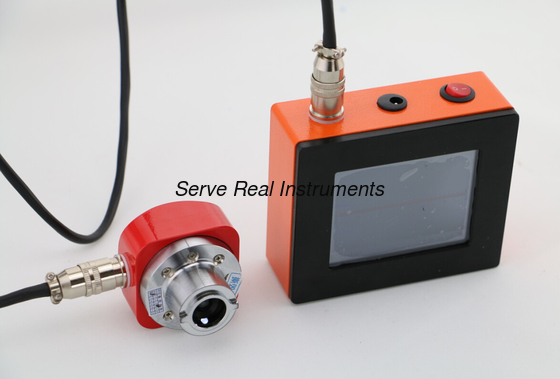

This crack gauge is used for quantitative detection of crack width on concrete structures and metal surface, it's kind of common concrete Non destructive testing equipment.
Features

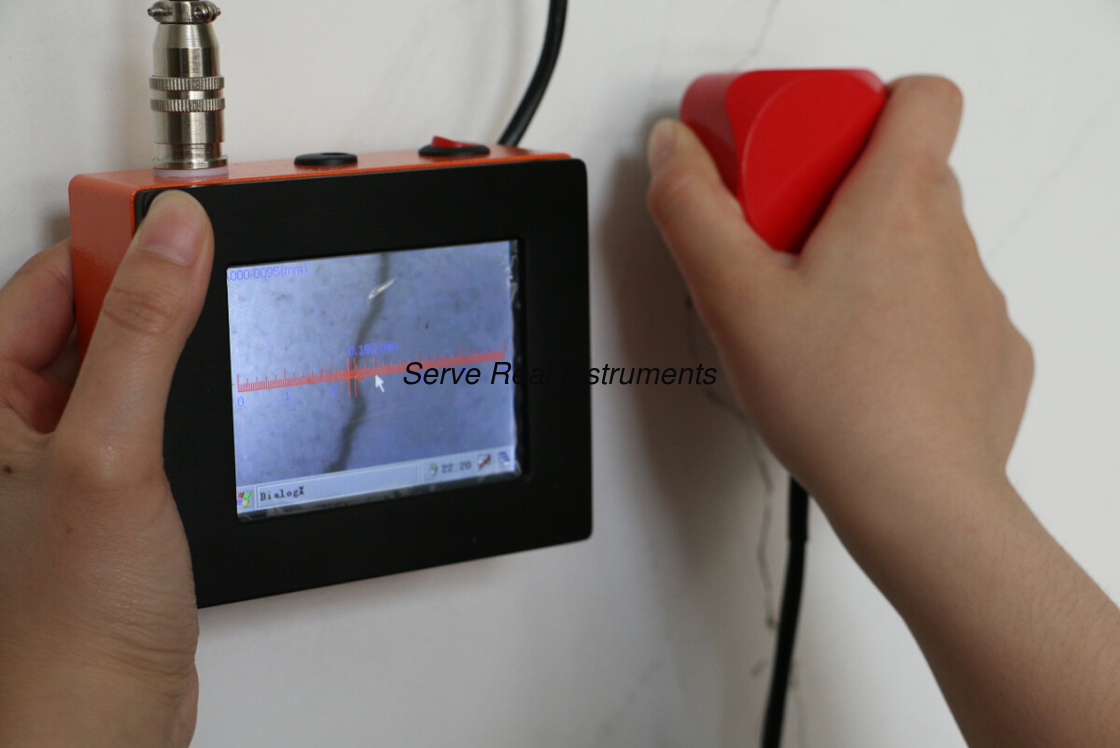

Automatic interpretation, direct display of crack width value on screen
Automatic shooting of crack photo, real time image display
Photos and data free review
Multiple probes with different amplification available
Lighting device self-contained with probe capable for all whether operation, won't be affected by the illumination change
Portable main machine made of plastic, features nice appearance, durable in use
Bmp format photo can be stored in u flash disk;
Can storage width, scale, amplification, crack code together with the crack photo.
Technical Specifications
| Crack width test range | 0-12mm; |
| Screen size | 3.5inch touch screen |
| Interface | standard USB and SD card interface |
| Testing accuracy | 0.01mm; |
| Power supply | 7.4V Li-on battery |
| Amplification factor | 40times |
| Storage capacity | 100000pcs crack test points image and width data; |
| Continuous working time | 10 hours |
| Working temperature | -20℃~+60℃ |
| Main machine size | 120mm×90mm×50mm; |
| Weight | 250g |
| Storage information | crack image, crack coding, width value, electric ruler, amplification times, operation date, personnels, can save user-defined information |
Standard Configuration
Main machine, 12mm probe, quick recharger, air bulb balloon, aluminum alloy carrying case
, usb cable, disc, manual, certificate
