| Place of Origin: | China mainland |
| Brand Name: | SRI |
| Certification: | ISO |
| Model Number: | RL-71 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 1000-1500USD |
| Packaging Details: | carrying case |
| Delivery Time: | 5 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100Set/month |
Model: RL-71

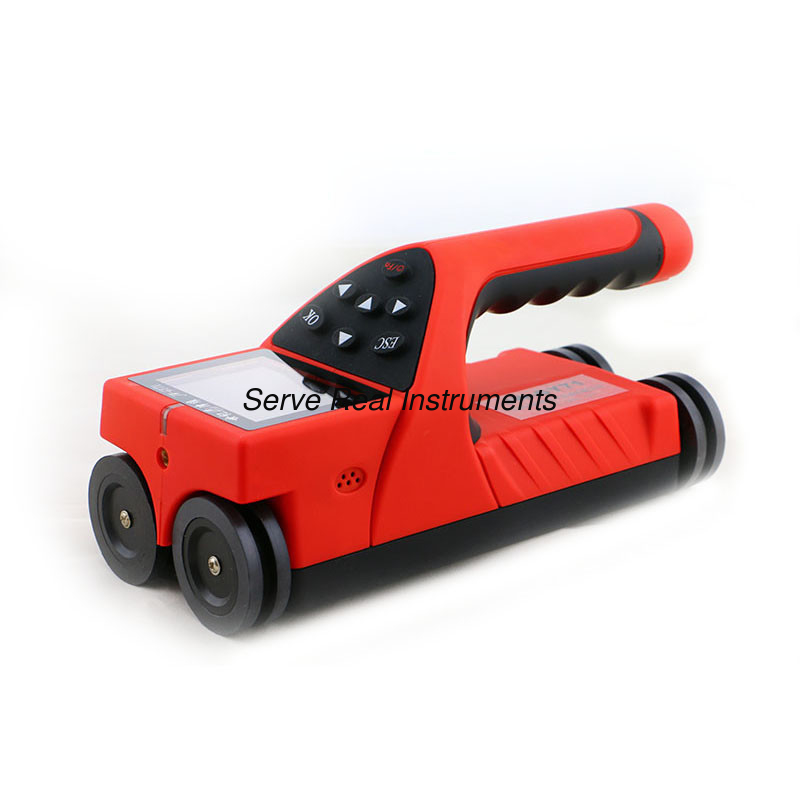

It’s a portable rebar locator, it can detect the rebar location, trend, distribution, protective layer thickness, also it can detect the magnetic body and electrical conductor in the non-magnetic and non-conductive body.
Features
Waveform scan, direct in sight of densely distributed steel bars
Accurate display of concrete protective layer thickness, can indicate the gap of rebars
Grid/section scan, waveform scan can measure up to 30m in length in one scan
With storage/inquiry/delete function, can store up to 12000pcs components or 200000 test point
USB/bluetooth data transmission
PC data management software for data management and report generation(3D imaging function)
8inch high definition color LCD(320×240)
High capacity 18650 lithium battery, 30hours continuous working after full-charge
Integration design, compact, light in weight, English interface
Technical specifications
| Rebar diameter range | 6mm-50mm | ||
| Rebar diameter measure error | ≤±1mm | ||
| Protective layer thickness measure range | 1st range 6-90 | ||
| 2nd range 7-200 | |||
| Protective layer thickness measure error | 6mm-59mm | 7mm-79mm | ≤±1mm |
| 60mm-69mm | 80mm-119mm | ≤±2mm | |
| 70mm-90mm | 120mm-200mm | ≤±4mm | |
|
Net weight
|
0.65Kg |
Overall size
|
220×96×108mm |
| Working environment requirements | |||
| Ambient temperature | 10 ° C ~ 40 ° C | ||
| Relative humidity | <90% RH | ||
| Power supply | 7.4VDC, 2200mAh | ||
| Storage environment requirements | |||
| Ambient temperature | -20 ° C ~ 50 ° C | ||
| Relative humidity | <90% RH | ||
