Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | Wuxi |
| Brand Name: | SRI |
| Certification: | ISO 9001 |
| Model Number: | JT-BZ01 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 2000-4000USD |
| Packaging Details: | Standard export package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 200set/month |
| Application: | Traffic Engineering | Test Mode: | Non-contact |
|---|---|---|---|
| GPS: | Optional | Display: | Touch Screen |
Model: JT-BZ01
Standards
GB/T 18833-2012 "Road Traffic Reflective Film"
GB/T 26377-2010 "Retroreflection Measuring Instrument"
JJG 059-2004 "Verification Regulations for Retroreflective Measuring Instruments"

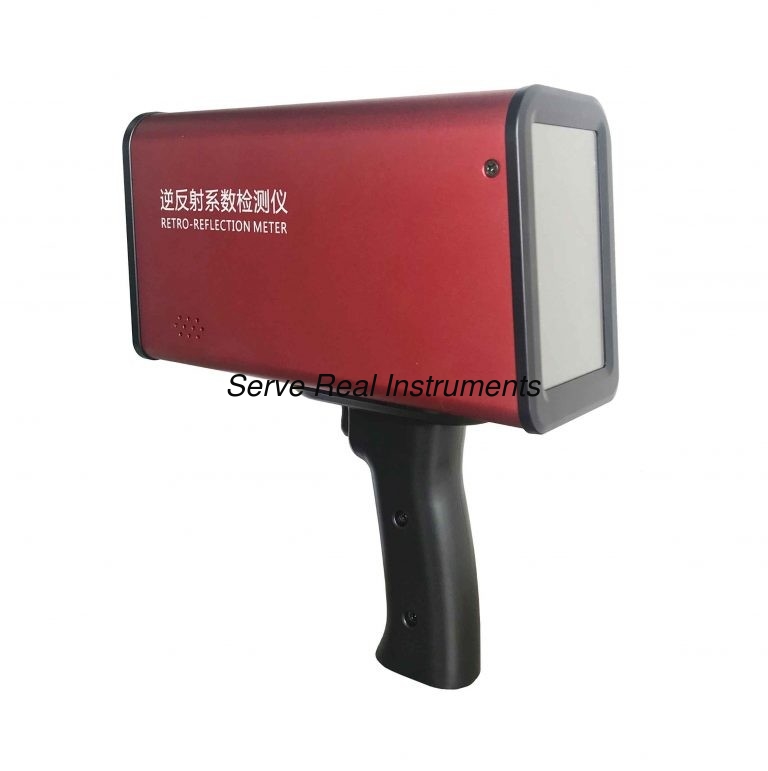

This retroreflectometer is used for measurement of the retroreflectivity of the vehicle body reflective material and road traffic signs.
Features
Anti-scratch full metal housing
3 inch high brightness LCD capacitive touch screen
Large-capacity lithium battery, continuous use time is not less than 2 days
Preset parameters, display system information such as date, time, power, etc.
Automatic calibration zero setting and adjustment of measurement standards
Two ways to input Chinese characters and English by soft keyboard and handwriting
Storage records are greater than 99999, and inspection records can be inquired in detail at any time
Support data storage in Excel form
Transfer the recorded data to the background terminal (PC) through the USB interface and export it directly to the U disk
Long life, low illumination, high sensitivity photoelectric measurement assembly
High-precision, high-stability analog data acquisition and A/D conversion circuit
Support multiple measurements to calculate the average
Magnetic calibration and detection method, more convenient
Real-time measurement display
Bluetooth printer (optional)
GPS positioning (optional)
Specifications
| Measurement items | retroreflective coefficient (unit: cd/lx/m2) |
| Measurement range | 0-1999 |
| Set the incident angle | –4° |
| Set the observation angle | 2° |
| Measuring diameter | >30mm |
| Inaccuracy | ±5% |
|
Standby measurement time (intermittent measurement) |
≈48h |
| Built-in power supply capacity | h |
| Charging power supply | DC5V |
| Use environment temperature | 0-40℃ |
| Use environment humidity | <80% |
| Whole machine weight | 1860g |
| Machine volume | 220*246*82mm (L×H×W) |
