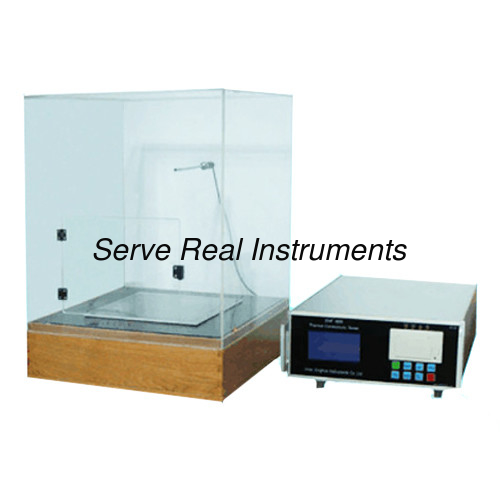

Flat-Plate thermal conductivity tester ASTM D1518, JIS-1096

Flat-Plate thermal conductivity tester ASTM D1518, JIS-1096

Flat-Plate thermal conductivity tester ASTM D1518, JIS-1096

Product Details:

Place of Origin: China
Brand Name: SRI
Certification: ISO 9001
Model Number: FZ-606D

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 1500USD
Packaging Details: Polywood case
Delivery Time: 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 50set/month
Contact Now
Detailed Product Description
Test Standards: ASTMD1518 JIS-1096 Test Material: Fabrics

This instrument is used to determine the insulation performance of ordinary fabrics, knitted fabrics, fluffed fabrics, quilted product cushions and various insulation materials.MCU control, large LCD display, automatic data management, can print output, easy program setup, fast test.


Standards: GB/T11048, ASTMD1518,JIS-1096




1. Temperature adjustment range of hot plate: 20~50 ℃

2. Warm-up time setting range: 0~99 minutes

3. Cycle heating cycle setting range: 1 ~ 9 times

4. Test times: 1 to 9 times

5. Minimum resolution of temperature display: 0.1 ℃

6. Technical parameters of heating plate: 40W test plate, 80W protection plate, 120W bottom plate

7.Test board size: 250 × 250 mm

8.Test bench size: 510 × 51 × 640 mm

9.Outline dimension of electric control box: 300 × 345 × 150 mm

10. Power supply: AC 220V ± 5%, 50Hz

11. Net weight: 30kg
