Texture analyzer AACC 74 AOAC food drug analytical instrument

China Texture analyzer AACC 74 AOAC food drug analytical instrument supplier
Texture analyzer AACC 74 AOAC food drug analytical instrument supplier Texture analyzer AACC 74 AOAC food drug analytical instrument supplier Texture analyzer AACC 74 AOAC food drug analytical instrument supplier

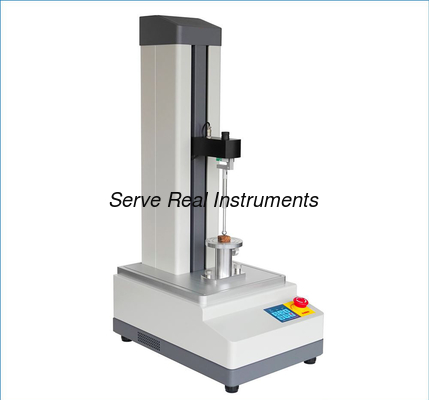

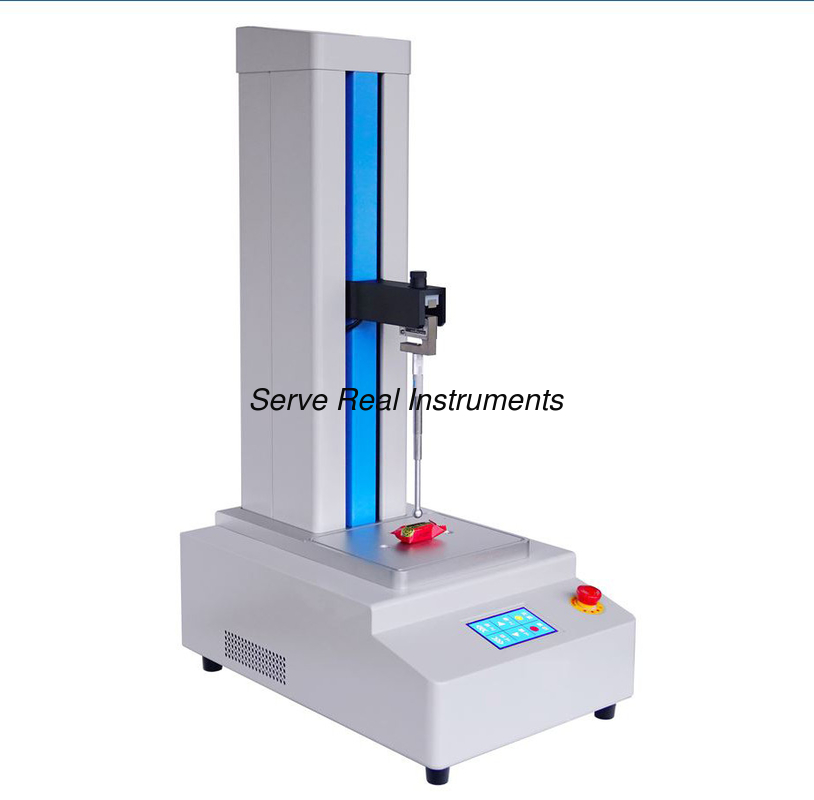

Large Image :  Texture analyzer AACC 74 AOAC food drug analytical instrument

Product Details:

Place of Origin: China
Brand Name: SRI
Certification: ISO 9001:2000
Model Number: FX-TA

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 8000-15000USD/set
Packaging Details: Standard exporting package
Delivery Time: 5-10 working days
Payment Terms: T/T, L/C, PAYPAL
Supply Ability: 200 sets/month
Minimum Order Quantity: 1set
Contact Now
Detailed Product Description
Function: Texture Analysis Category: Food & Drug Test
Standards: AACC 74 AOAC Software: Yes


Standards & Regulations

Chinese Pharmacopoeia 2020 edition

Comply with current Chinese GMP regulations

National Standard "Food Additive Gelatin" GB6783-2013

National Standard "Medicinal Gelatin Hard Capsule" GB13731

National Standard "Food Additive Gelatin Kederan Gum" GB28304-2012

National Standard "Frozen Surimi" GB/T36187-2018

Light Industry Standard "Edible Gelatin" QB/T4087-2010

Agricultural industry standard "Determination of meat tenderness and shear force determination method" NY/T1180-2006

AACC 74-09 Bread Hardness Test (American Cereal Chemistry Association)

AOAC (American and European Gel Association)


Applications & functions

The TA-10H texture analyzer can be used for the physical analysis of food, pharmaceuticals, dairy products, meat products, cosmetics, gels, candy, fruits and vegetables, jams, and other samples.

TA-10H can quantify the hardness, brittleness, tenderness, viscosity, elasticity, toughness, cohesion, chewiness, freezing strength, tensile strength, rupture strength, shear strength, compressive strength, and penetration of samples Multiple physical properties such as strength, creep characteristics, relaxation characteristics, etc.




It is a basic type texture analyzer which is more suitable for teaching.

Equipped with a high-definition touch screen, as an auxiliary button, clear and eye-catching, easy to test.

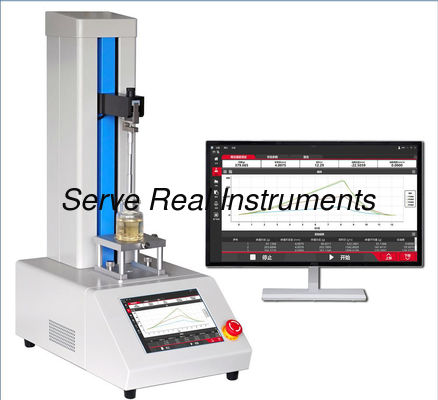

Install texture analysis software to provide rich parameter settings, accurate data collection and professional data analysis.

Provides multi-level authority management: three levels, multiple users, and ordinary users can add unlimited times. Login mode: user name + password.

With automatic unconditional audit trail function: it is automatically protected by the system database to realize all traceability of measurement results and processes.



3.1 Load range: 0~20 kg (0~200 Newton)

3.2 A variety of force sensor elements are available: 1, 2, 5, 10, 15, 20 kg and other specifications.

3.3 Load force detection accuracy: better than 0.01%

3.4 Load force resolution: 0.001g

3.5 Deformation displacement range: 0~310mm (0~410mm)

3.6 Displacement resolution accuracy: 0.001mm

3.7 Detection speed: 0.01mm/s~30mm/s

3.8 Speed accuracy: ≤±0.1%

3.9 Data collection rate: Up to 4800 groups per second; 200, 500, 1000, 2000 groups per second can be selected after optimal filtering

3.10 Instrument protection function: emergency braking, upper and lower limit control, power sensor unit overload protection, detection data encryption

3.11 Dimensions: length 480 × width 330 × height 790 mm

3.12 Weight: 26Kg
