Product Details:
Payment & Shipping Terms:
|
| Display: | LCD | Standard: | ASTM D5581 |
|---|---|---|---|
| Power Supply: | AC 220V, 50HZ | PC Connection: | Yes |
Standard: JTG E20-2011, ASTM D5581
Description

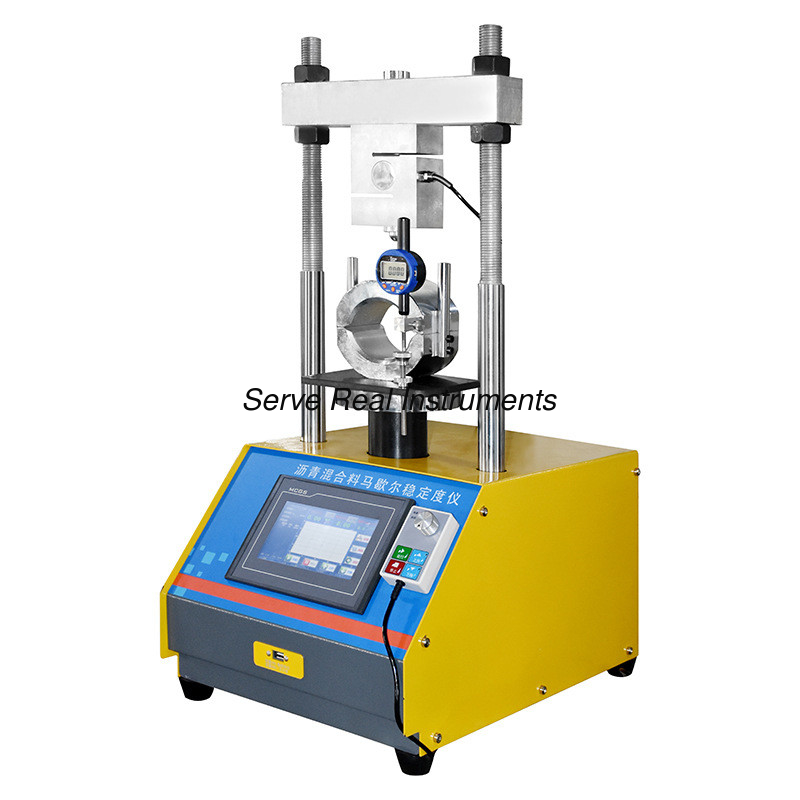

This Marshall stability tester is suitable for Marshall stability test of asphalt mixture, it can determine the broken point of asphalt mixture, thus to provide reference for asphalt mixture mixing ratio design or asphalt pavement construction quality inspection.
Features
Integration design, control system built inside in main machine, improved reducer, large torque step motor, closed loop speed control, constant loading rate, no vibration, no noise, 10.1 inch touch screen display, better informative, more direct.
Equipped with PC software, better data management, complete test report, USB interface, Can be connected to computer and control test via software, also the test data can be exported via flash disk.
Built-in high speed ARM processor, better interruption of break point
Less noise when working, no vibration, low motor rotation rate
Technical specifications
1. Rising rate: (50 ± 5) mm / min
2. Indenter diameter: (101.6 ± 0.2) mm
(152.4 ± 0.2) mm
3. Maximum pressure: 50KN accuracy: 0.5%
4. Flow value range: 25mm accuracy: 0.5%
5. Ambient temperature: 0-60 ℃
6. Relative humidity: <85%
7. Power consumption of whole machine: not more than 1KW
8. Dimensions: 560x510x920mm
9. Net weight of the instrument: 90Kg
10. Power supply voltage: AC220V / 50HZ
