Model: HNJ-LSY
Standards: GB/T50082-2009
Description

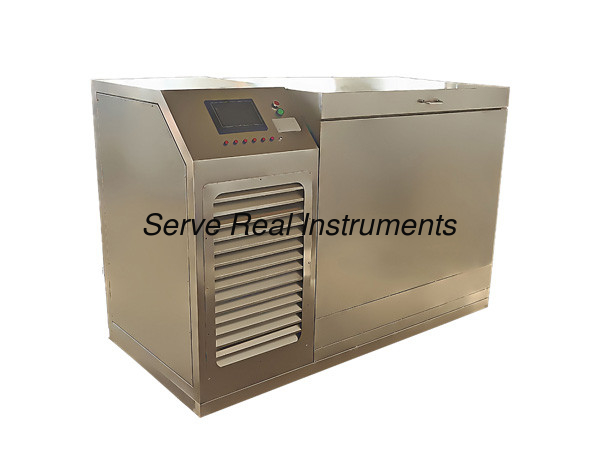

The concrete sulfate dry-wet cycling test equipment is used to test the concrete sulfate corrosion resistance under dry-wet alternant environment, by means of the max withstanding times, the test will process in automatic way, it’s kind of professional equipment for concrete durability test.
Features
1.7 Inch colorful LCD, touch screen operation
2. Human friendly interface, screen real-time display conditional curve
3. Built-in printer real-time print test data
4. Us made ph sensor
5. Imported whole-sealing compressor, low power consumption and noise, stable performance
6. Solid-state relay, no electric and magnetic field interference, guarantee long-time stable performance
7. Upper computer software can batch import test data to computer, also can control and print conditional curve
8. Su307 stainless steel made, better durable and corrosion resistance
9. Valves, pipes, sensors, recycling pump, solenoid valves, liquid storage device are all applied with corrosion resistance design.
10. High grade heat-insulation rock wool for heat-insulation
11. power-failure recover function
Technical specifications
|
Model |
HNJ-LSY-18 |
HNJ-LSY-36 |
|
|
Type |
Automatic integration |
Automatic integration |
|
|
|
Specimen capacity |
100×100×400 18pcs |
100×100×400 36pcs |
|
100×100×100 54pcs |
100×100×100 108pcs |
||
|
Sulfate corrosion temperature |
25~30℃ |
||
|
Heating dry temperature |
80±5℃ |
||
|
Cooling temperature |
25～30℃ |
||
|
Test accuracy |
±0.5℃, liquid level ±3mm,PH value: ±0.01PH |
||
|
L*W*H(mm) |
Overall size: 1520*970*1190 |
||
|
Specimen cabinet: 1000*620*720 |
|||
|
Liquid storage cabinet: 1000*620*200 |
|||
|
Screen |
7 Inch touch screen, smart one-key control |
||
|
Specimen size(mm) |
100mm×100mm×100mm |
||
|
100mm×100mm×400mm |
|||
|
Heating insulation layer thickness |
100mm |
||
|
Total power |
3.5KW |
3.5KW |
|
|
Heating power |
2KW |
3KW |
|
|
Refrigeration compressor |
Imported whole-sealing compressor |
||
|
Cooling mode |
Air cooling, medium: R-22 |
||
|
Recycling pump |
Corrosion resistance chemical pump |
||
|
Recycling medium |
Na2SO4 solution(5%) |
||
|
Medium filling amount |
Liquid level 20mm higher than specimen |
||
|
Recharging |
3N220V 50Hz |
||
|
Process |
Soak time:15h±0.5h; flash off time:1h±0.1h; drying time:6h±0.1h; cooling time:2h±0.1h; total cycle:24h±2h |
||
|
Net weight |
210KG |
230KG |
|
|
Specimen support |
2pcs |
3pcs |
|
|
Temperature sensor |
US made temperature sensor, 1pc |
||
|
PH sensor |
US made composite type, 1pc |
||
|
Liquid level sensor |
304 stainless steel, high temperature corrosion resistance |
||
|
Transmission mode |
Remote wireless transmission set, 1set |
||
|
Manual and warranty card |
1pc |
||
|
Upper computer software disc |
1pc |
||
|
Desk computer |
Optional |
||
