| Place of Origin: | Jiangsu |
| Brand Name: | SRI |
| Certification: | ISO9001-2008 |
| Model Number: | HNJ-DTL |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 1000-1500USD/Set |
| Packaging Details: | Carrying case |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 200Sets/Month |
HNJ-DTL-6
Standards: ASTM C1202, AASHTO T277－05,GB/T50082-2009

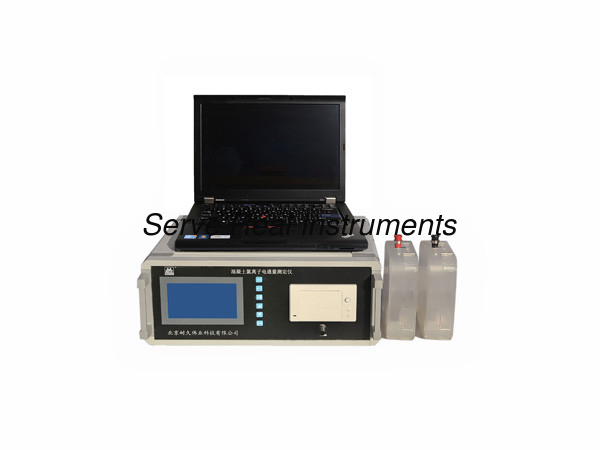

this equipment is used to test the chloride ion penetration resistance of concrete, the Chloride ion penetration resistance is a key index to indicate the concrete durability.
Features
●Microprocessor control, power-failure data protection, high test accuracy
●Large LCD indication, real-time indication, can work without computer, easy for operation in outside
●Standard RS232 serial port communication, can generate electric flux test report and curve, also can print and storage
●Short-circuit automatic protection design
●Imported material made for fixture, high test accuracy, easy in operation
●Can sync. test 6/9/12/16pcs specimen
●Imported ABS & thickened red cooper made for fixtures
●Vacuum water-saturated equipment equipped
Technical Specifications
| Test ability | C30~C50 Portland cement concrete |
| Work voltage | ~220VAC/60VDC |
| test channel | 6/9/12/16 |
| Work ambient | 0℃~50℃, ≤75%RH |
| Test error | <1% |
| Work current | 0-360mA |
| Main machine size | 385*345*145mm |
| Net weight | 5 kg |
| Main machine overall size | 530*200*420mm |
| Water-saturated machine weight | 32kg |
| Water saturated machine overall size | 750*680*400mm |
| Electric flux part weight | 9 kg |
| Electric flux part overall size | 440*350*210mm |
| Total weight | 46 kg |
| Standard configuration | Main machine |
| Test fixtures | |
| Vacuum water-saturated equipment |

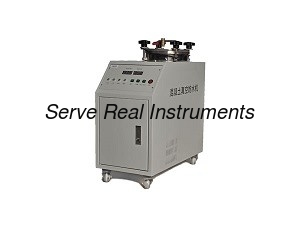

Automatic vacuum water saturation tank
