150J/300J Semi-Automatic Impact Testing Machine

China 150J/300J Semi-Automatic Impact Testing Machine supplier

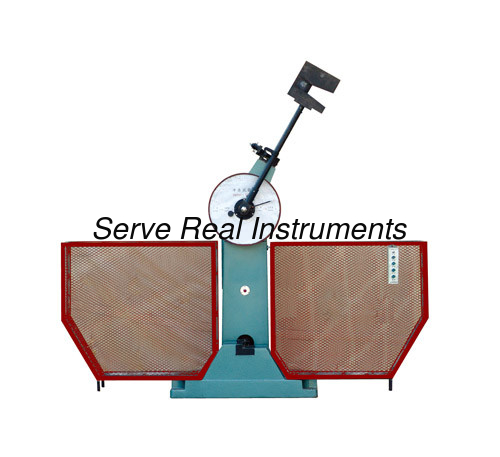

Large Image :  150J/300J Semi-Automatic Impact Testing Machine

Product Details:

Place of Origin: China
Brand Name: SRI
Certification: ISO 9001:2000
Model Number: JB-300B

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 2000 USD/set
Packaging Details: Polywood case
Delivery Time: 5-10 working days
Payment Terms: T/T, L/C, PAYPAL
Supply Ability: 200 sets/month
Contact Now
Detailed Product Description

JB-300B-Semi-automatic model

JBS-300B-Digigtal display model

JBW-300B-Computer control model



Description

The impact testing machine is used to test the impact strength of metal material under dynamic loading. it has models of semi-automatic, digital display, computer display. It’s kind of common material testing machine.

Features

The main machine is of split structure, cantilever hanging mode, with “U” shape of pendulum hammer.

The impact knife is fixed by screw.

Automatic test piece feeding, positioning at end.

Main machine is equipped with safety screen

It complies to the GB/T3803-2002 <Pendulum hammer impact testing machine inspection>, test the metal impact strength by following the GB/T229-2007<Metal Charpy Gap impact testing methods>



Technical Specifications

Impact power

150J/300J(JB-500B 500J/250J)

Pendulum axis center to impact point

750mm

Impact speed

5.2m/s

Pendulum hammer pre-elevation

150°

Test sample support span

40+0.2mm

Jaw fillet

R1-1.5mm

Impact blade fillet

R2-2.5mm, R8±0.05mm

Test –piece size

10(7.5,5)mm×10mm×55mm

Overall size

2124×600×1340(mm)

Net weight

450kg
