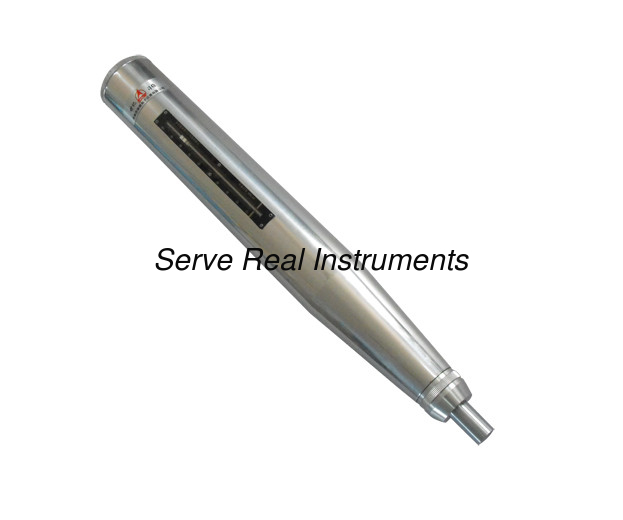

High strength Schmidt hammer, construction NDT instrument

High strength Schmidt hammer, construction NDT instrument

High strength Schmidt hammer, construction NDT instrument

Product Details:

Place of Origin: Jiangsu
Brand Name: SRI
Certification: GB
Model Number: HT-1000

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 800-1000USD/Set
Packaging Details: Carrying case
Delivery Time: 3-5 working days
Payment Terms: T/T, Paypal
Supply Ability: 200Sets/Month
Contact Now
Detailed Product Description


The high strength Schmidt hammer is used to test strength of high-rise buildings structure components, bridges, and concrete components( board, beam, column, crane span structure. It’s common modern building NDT inspection instrument.


a. The guiding rod is made of high quality imported material, with high accuracy and abrasion-proof.

b. Ultrasonic aluminum enclosure prolong the tooling life;

c. External spring structure is easy for friction adjusting and also can guarantee uniform friction force between needle pivot and slider, thus to assure the instrument accuracy.

Technical specifications

Strength testing range: 50-80Mpa

Standard impact kinetic energy: 9.8J (1Kgf.m)

Strike hammer travel: 140mm

Needle slider static friction force: 0.5N-0.8N

Test anvil calibration value: 83±2

Spring stiffness: 10N/cm

Overall size: Φ65×486mm

Weight: ≈3.5Kg

Packing list

1. Main machine

2. Drying agent

3. Grinding wheel:

4. Technology files

5. Operation manual

6. Quality certificate
