| Place of Origin: | Jiangsu |
| Brand Name: | SRI |
| Certification: | GB, JGJ |
| Model Number: | HT-225 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 150-200USD/Set |
| Packaging Details: | Carrying case |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 300Sets/Month |
Description

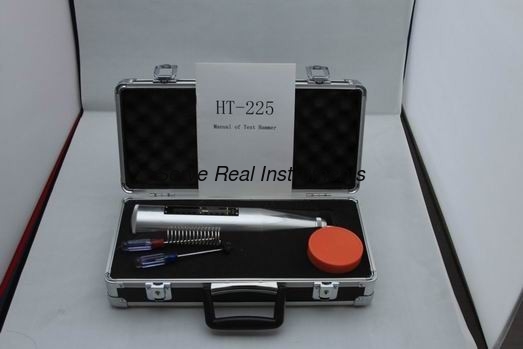

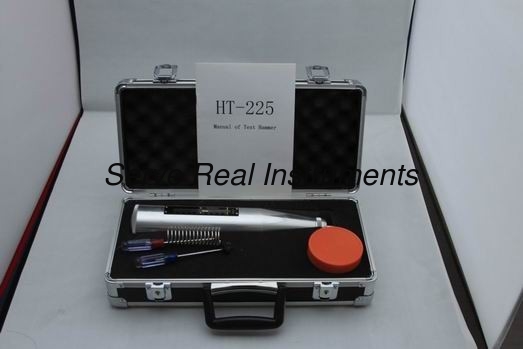

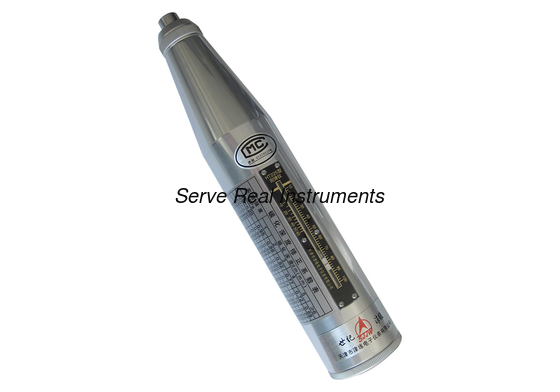

This concrete rebound test hammer is designed according to the JGJ/T23-2011 and JJG817-2011 standards, it’s suitable to test general concrete components compressive strength. It’s kind of common concrete test instrument.
Features
Center guiding rod is made of imported high quality material, features high accuracy,
Wearing resistance
Enclosure made of ultralumin material, avoid any scratch to the instrument, prolong the tooling life.
External placing of the pointer slider, easy for adjusting and uniform friction, guaranteed the accuracy.
Technical specifications
Test range: 10-60Mpa
Nominal impact energy: 2.207J(0.225Kgf.m)
Spring stretch length: 75±0.3mm
Pointer slider static friction: 0.65±0.15N
Impact rod sphere radius of curvature(SR): 25mm±1mm
Average rebound value again anvil (Rm): 80±2
Overall size: Φ54×278mm
Net weight: 1Kg
Packing weight: 2kg
