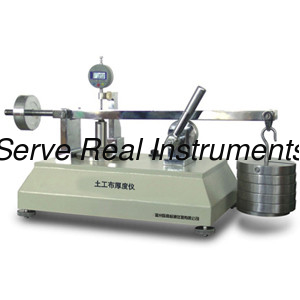

Geotextiles thickness gauge, Geosynthetics test instrument

: Large Image : Geotextiles thickness gauge, Geosynthetics test instrument

Product Details:

Place of Origin:	jiangsu
Brand Name:	SRI
Certification:	GB/T17636
Model Number:	GT-060

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	1500-2000USD/Set
Packaging Details:	meet standard packing requiments
Delivery Time:	5-10 working days
Payment Terms:	TT/Paypal
Supply Ability:	200 set/month

Contact Now

Detailed Product Description

Application

This tester is used to determine the thickness of geosynthetics and relevant products under different pressure within specified time.

Standards compliance

JTG E50, ISO 9863, GB/T 13761

Technical specifications

1. Pressure foot area: 25cm²( circle diameter: φ56.42mm)

2. Press-foot weight: 5N

3.Specimen pressure: 2±0.01kpa; 20±0.1kPa; 200±0.1kPa

4.Dial gauge: 0~24±0.01mm

5.Dial gauge: 0~1±0.001mm

6. Stop watch: min resolution is 0.1s

7.Overall size: 730×320×350mm

8. Weight: 40kg
