Product Details:
Payment & Shipping Terms:
|
| Test Index: | Carbon Black And Pigment Dispersion | Standards: | ISO 18553 |
|---|
GB/T18251-2000, ISO 18553-2002
1. Analysis of pigment or carbon black dispersion in polyolefin pipes, pipe fittings and mixed ingredients
2. Measurement and analysis of solid powder, including content analysis of different color particles
3. Measurement and analysis of paste particles, including content analysis of different color particles
4. Measurement and analysis of tiny objects and particles in liquid, including content analysis of different color particles
1. Can automatically analyze and rank carbon black microscopic images according to the national standard-GB/T 18251-2000.
2. Can display scale and cross grid lines on the image.

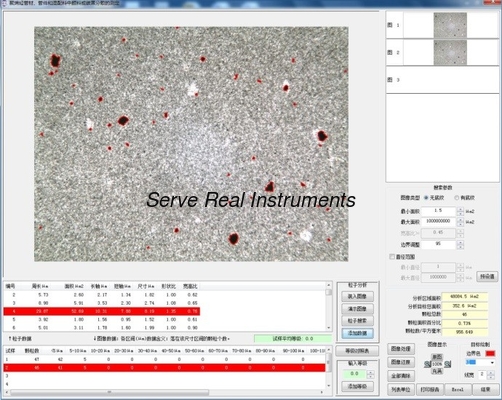

3. The software can analyze the captured particle image, and give the effective object number, circumference, equal area circle diameter, roundness, equal circumference circle diameter, hole area, excluding hole area, minimum rectangular area, rectangularity, Major axis length, major axis direction angle, vertical major axis length, major axis aspect ratio, minor axis length, minor axis direction angle, vertical minor axis length, minor axis aspect ratio, maximum aspect ratio, area width, area height , Area aspect ratio, average diameter, circle area ratio, half circumference, field of view area, number of contents, area of contents, percentage of area of contents,
Content number density, effective number, effective area, effective area, effective area percentage, effective number density, etc. 30 kinds of parameter data. The data can be output as an EXCEL table, number the particles to be taken, and the number corresponds to the particle serial number in the table, and generates a particle size statistics table, a particle size area statistics table, a particle size distribution table, and a cumulative particle size distribution table.
1. Professional imaging test, high test accuracy
2. Extensive test parameters: (equivalent diameter, line of apsides, area, perimeter), as well as form (rounding, rectangle, length-width ratio)
3. Different product equipped with different treating process, automatic test process
4. Professional data analysis and reporting system;
5. Automatic platform improved the automatic degree
6. Can fit with various kinds sampling devices (camera or digital camera)
| Measuring method | Image analysis |
| Measuring range | 0.5μm~1cm |
| Measuring & analysis time | Vary by different image size |
| Light source Angle of incidence angle | 30° |
| Imaging resolution | 2592*1944 (5000000 pixel CCD camera) |
| Image size | 640*480,1024*768,2048*1536,2592*1944 |
| Optical amplification times | 100times( eye lens 10x; objective 5x 10x 40x 60x) |
| Communication interface | USB |
| Illumination system | Built-in 6V/20W halogen lamp, adjustable brightness, drawer type lamp holder, more convenient to replace the bulb (optional 3W LED cold light source). |
| Microscope material | The whole machine is mold-proof, all-metal structure, and integrated body. |
| Power supply | AC 110-120/220-240V, 0.42/0.25A 50/60Hz |
| Net weight | 18kg |
