Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | jiangsu |
| Brand Name: | SRI |
| Certification: | ISO9001 |
| Model Number: | FZ-812D |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 3000-3500USD/Set |
| Packaging Details: | meet standard packing requiments |
| Delivery Time: | 5-10 working days |
| Payment Terms: | TT |
| Supply Ability: | 100 set/month |
| Test Material: | Fabrics, Water-proof Materials | Standards: | AATCC 127 DIN 53886 JIS L1092 SO811 |
|---|
Description

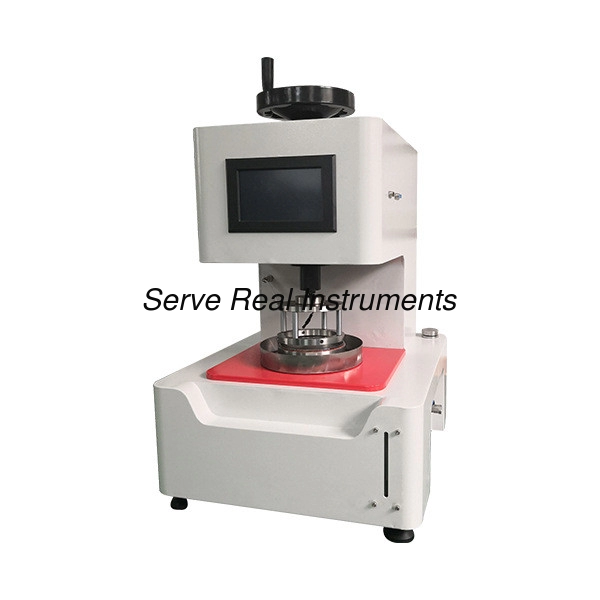

This equipment is used to test the water permeabilty resistance of textiles and fabrics which have been treated with waterproofing work.
Standards compliance
GB/T4744 FZT01004 AATCC 127 DIN 53886 JIS L1092 ISO811
Features
1. Micro-Computer control, LCD menu, 5 testing method inside
2. Water tank build-in, unique water pressure rate balance system, accurate and stable rise speed.
Technical specifications
|
Model |
Testing range |
accuracy |
Water pressure Rise speed |
Sample clamp Head area |
|
-5 |
500pa-50kpa |
0.2%F.S |
1kpa-20kpa |
100cm2 |
|
-20 |
500pa-200kpa |
1kpa-30kpa |
||
|
-50 |
5kpa-500kpa |
1kpa-100kpa |
7.8cm2 (optional) |
|
|
-100 |
Tailor made |
|||
2. Test mode: pressure rise method; constant pressure timing method; constant pressure constant time method; relaxation method; leaking method.
3. Test unit can be freely set(pa, Kpa, mmHg, cm H2O)
4.Working power: Ac 220V±10% 50HZ 100W
5.overall size: 550×400×500mm
6. Weight: 50kg
