Place of Origin: | Jiangsu |
Brand Name: | SRI |
Certification: | ISO 9001 |
Model Number: | SDL-2 |
Minimum Order Quantity: | 1set |
---|---|
Price: | 900-1500USD |
Packaging Details: | Standard exporting package |
Delivery Time: | 3-5 days |
Payment Terms: | T/T, PAYPAL |
Supply Ability: | 100 sets/month |
Standards: | EN 933-8 | ASTM D2419 | AASHTO T176 | Type: | Motorized |
---|---|---|---|
Category: | Aggregate Test Equipment | Power: | 220V/110VAC, 50/60HZ |

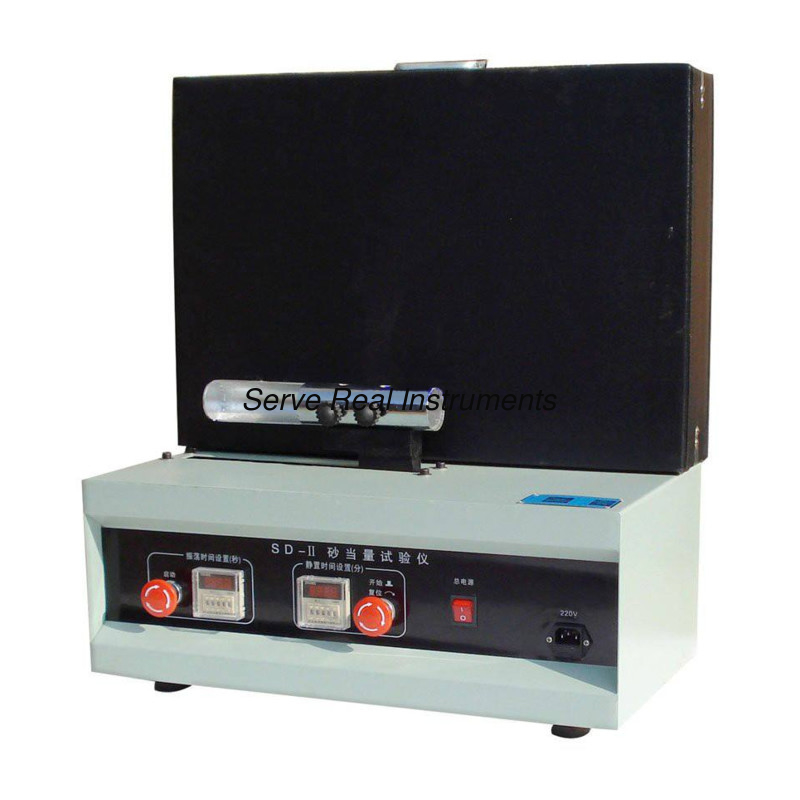

The electric sand equivalent tester is used to determine the aggregate purity degree by testing the cohesive soil and impurity content in the fine aggregates. It’s suitable to test the asphalt mixture, cement concrete, natural sand, manufactured sand, aggregate chips, the maximum diameter shouldn’t over than 4.75mm. It's a kind of very common aggregate testing instrument.
1. Power supply: 220V±10 50HZ
2. Power: 180W
3. Oscillation frequency: 180times/min
4. Amplitude: 203mm
5. Self timing: 30S
6. Overall size: 560*320*360mm
7. Test tube inner diameter: 32±0.25mm, height: 420±0.25mm
8. Flushing pipe outer diameter: 6±0.5mm, inner diameter: 4±0.2mm
