Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | Jiangsu |
| Brand Name: | SRI |
| Certification: | ISO9001 |
| Model Number: | ZNS |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 600-1000USD |
| Packaging Details: | meet standard packing requiments |
| Delivery Time: | 3-5 working days |
| Payment Terms: | TT/Paypal/Western Union |
| Supply Ability: | 500 set/month |
Description
The filter press is used to determine the filtration amount and to make the filter cake, it’s manufactured by API standards. It’s widely used in oilfield, geological survey, laboratory drilling fluids analysis.
Technical Specifications
|
No. |
Term |
Specification |
|
1 |
Effective Filtration Area |
45.6cm2 |
|
2 |
Working Pressure |
0.69mpa |
|
3 |
Drilling Liquid Cup Injection Rate |
240ml/Single Cup |
|
4 |
Drilling Liquids Limit Pressure |
1MPa |
Structure
Base assembly: comprised of base, support, they support the instrument
Drilling liquid assembly: cup, cup cover, filter screen, compress screw, compress knob.
Models Of Filter Press
|
No. |
Model |
Name |
Match |
|
1 |
ZNS-2 |
Middle pressure filter press |
Aluminum drilling liquids cup |
|
2 |
ZNS-2A |
Middle pressure filter press |
Stainless steel drilling liquids cup |
|
3 |

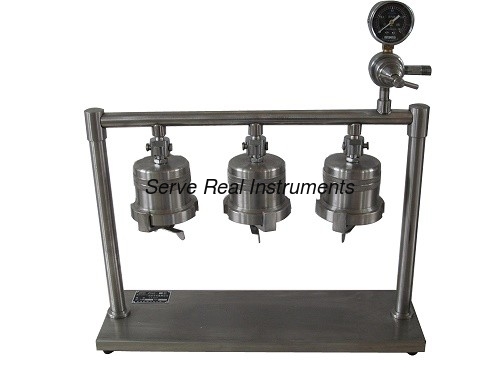

SD3 |
Triple gang middle pressure filter press |
Triple gang aluminum / stainless steel drilling liquids cup |
|
4 |

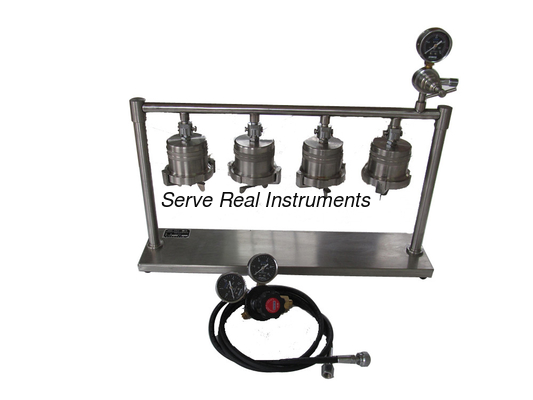

SD4 |
Four-gang middle pressure filter press |
Four-gang aluminum / stainless steel drilling liquids cup |
|
5 |

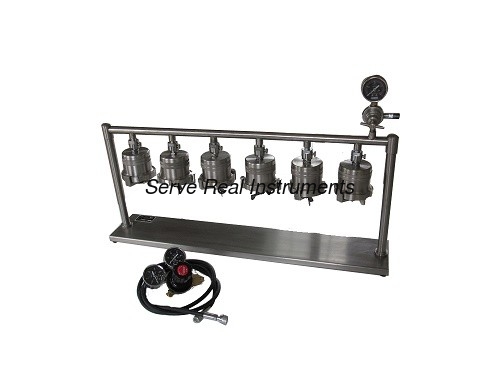

SD6 |
Six-gang middle pressure filter press |
Six-gang aluminum / stainless steel drilling liquids cup |
