Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | Jiangsu |
| Brand Name: | SRI |
| Certification: | ISO9001 |
| Model Number: | ZNF |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 1000-2000USD |
| Packaging Details: | meet standard packing requiments |
| Delivery Time: | 5-7 working days |
| Payment Terms: | TT/Paypal/Western Union |
| Supply Ability: | 300 set/month |
Description

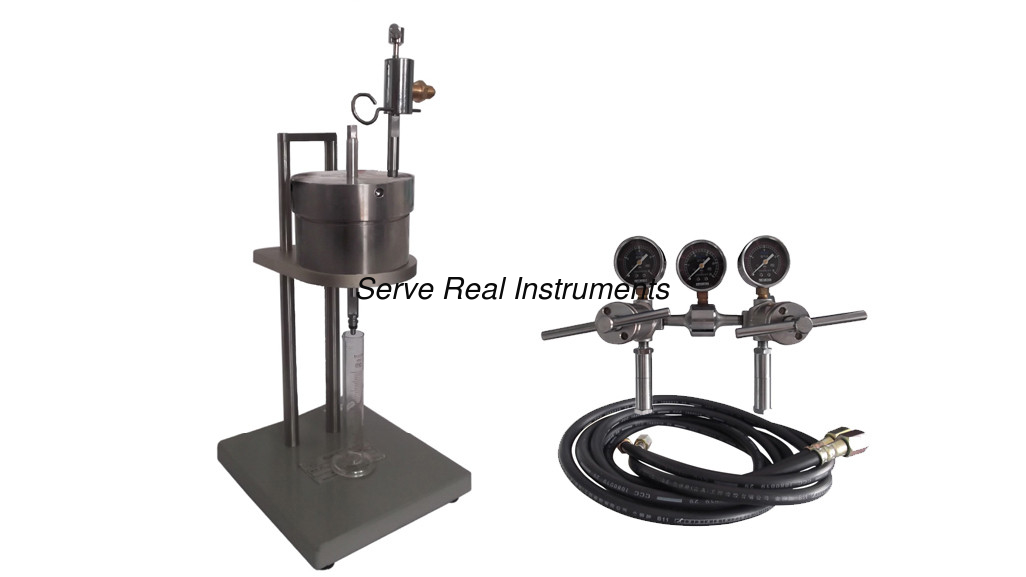

The adhesion coefficient tester is used to test the friction coefficient between drilling rig and borehole wall drilling fluids, thus can modify the drilling fluids to improve the lubrication behavior and prevent chucking accident happening. It’s kind of common drilling fluids instrument.
Technical Specifications
|
Adhesion platen diameter |
Φ50.7mm |
|
Working pressure |
3.5mpa |
|
Drilling fluids cup max pressure |
5mpa |
|
Filtration area |
22.6cm2 |
|
Air source |
Nitrogen,CO2 ( no oil, water and other impurity) prohibited use o2) 5Mpa rated pressure should > 5mpa |
|
ZNF-1 model |
No pressing tube assembly, manual pressing for adhesion between platen and filter cake by pressing rod |
|
ZNF-2 model |
with pressing tube assembly, pneumatic pressing for adhesion between platen and filter cake |
