Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | Jiangsu |
| Brand Name: | SRI |
| Certification: | ISO9001-2008 |
| Model Number: | FT-ST5000 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 3000USD |
| Packaging Details: | meet standard packing requiments |
| Delivery Time: | 7 working days |
| Payment Terms: | TT/Paypal/Western Union |
| Supply Ability: | 200 set/month |
| Power Supply: | AC220V, 50HZ, 200W | Overall Dimension: | 670×480×1440mm |
|---|---|---|---|
| Net Weight: | 145kg | Standards: | ASTM, ISO, GB |

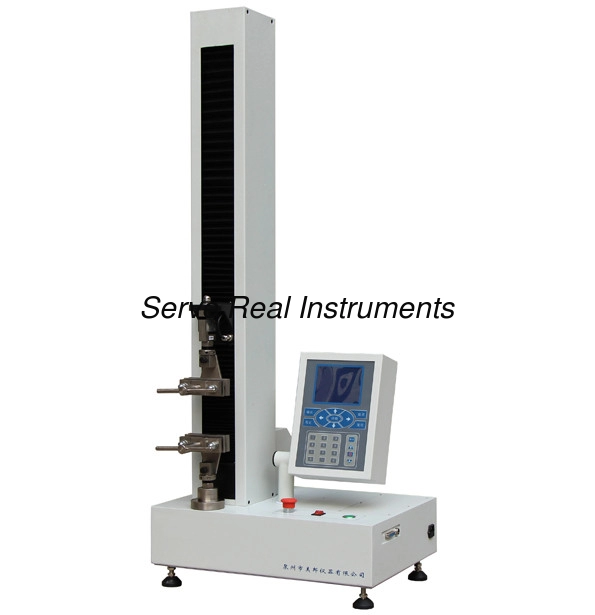

Application scope
Tensile broken strength and breaking elongation of cotton, gross, fiber, silk, fabric, non-woven cloth, paper, braid, non-woven
Standards
GB/T 3923.1,GB/T 3923.2,GB/T 3917.2,GB/T 19976, ISO 13934.1,
ISO 13934.2,ISO 13935.1,ISO 13935.2,ASTM D5035 ASTM D2261
Features
Constant rate elongation (CRE) principle, microcomputer control
LCD Display, friendly human interface
AC servo motor driven, ball screw driven, wide range speed set, suitable for multi kinds of material test
Imported high quality transducer
Computer communication interface equipped, can print and storage test report
Standards can be tailor made
No need to change transducer for tensile and puncture test
Advanced multithread processing of test data analysis
Technical Specifications
Test range: 1%~100%
|
Model |
50 |
250 |
500 |
|
Range |
500N |
2500N |
5000N |
Test accuracy: ≤0.2%F·S
Stretch rate: 0.01~1000mm/min
Max elongation: 600mm
Clamping way: manual
Power supply: AC220V, 50HZ, 200W
Overall dimension: 670×480×1440mm
Net weight: 147kg
