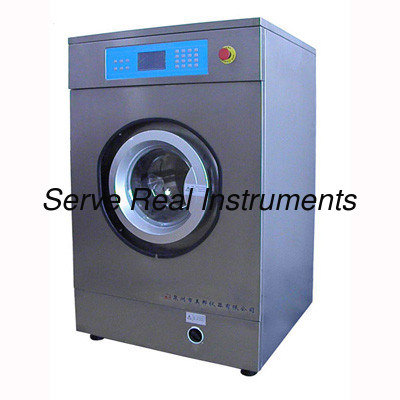

ISO Full Automatic Fabrics Washing Shrinkage Rate Tester

ISO Full Automatic Fabrics Washing Shrinkage Rate Tester

ISO Full Automatic Fabrics Washing Shrinkage Rate Tester

Product Details:

Place of Origin: Jiangsu
Brand Name: SRI
Certification: ISO9001-2008
Model Number: FT-089N

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 6000USD
Packaging Details: meet standard packing requiments
Delivery Time: 7 working days
Payment Terms: TT/Paypal/Western Union
Supply Ability: 200 set/month
Contact Now
Detailed Product Description
Power Supply: AC220V, 50HZ, 200W Overall Dimension: 810×720×1280mmm
Net Weight: 280kg Standards: ISO, GB, BS, EN

Application range

Shrinkage rate test for fabrics after washing, relax, felting and shrinkage test of wool fabrics after machine washing.


Microcomputer control, LCD display, easy operation

Preset 1A-12A standard program, self-program available; manual debug function available

High accuracy pressure transducer to detect water level

Variable frequency controlled motor with rotation speed of 20~99r/min, dehydrate rotation speed within 200~800r/min, stepless speed regulation

Full stainless steel enclosure and inner roller for longer tooling life


GB/T8629;FZ/T70009;ISO5077,6330;M&S P1,P1A,P3A,P12,P91,P99,P99A,P134;BS EN 25077/26330;IEC456

Technical Specification

Type: feeding in front of the door, horizontal roller type

Rated washing capacity: 5kg

Inner layer roller diameter: 51.5±0.5cm

Inner layer roller depth: 33.5±0.5cm

Inner-outer roller distance: (2.8±0.1)cm

Lifting piece qty: 3pcs (pieces distance 120°)

Lifting piece height: (5±0.5)cm

Rotation speed: 52r.min when washing, dehydrate (500±20)r/min; digital set, stepless speed regulation 40-800r/min

Water level control: low limit 10cm, high level 13cm, water level range 8-15cm

Temperature test: room temperature - 99.9℃±2℃

Power supply: AC 220V, 50HZ, 6.5KW

Overall size: 810×720×1280mmm

Net weight: 280kg
