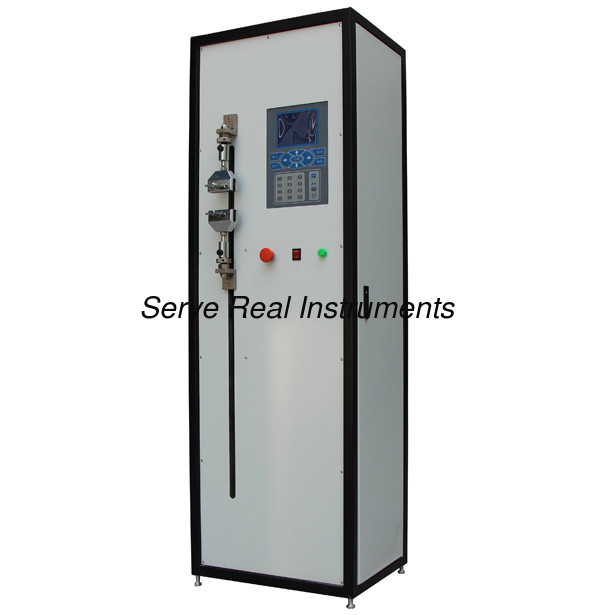

AATCC Fabrics Testing Equipment Cabinet Type Electric Peeling Strength Tester

AATCC Fabrics Testing Equipment Cabinet Type Electric Peeling Strength Tester

AATCC Fabrics Testing Equipment Cabinet Type Electric Peeling Strength Tester

Product Details:

Place of Origin: Jiangsu
Brand Name: SRI
Certification: ISO9001
Model Number: FT090L

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 4000-5000USD
Packaging Details: meet standard packing requiments
Delivery Time: 10 working days
Payment Terms: TT/Paypal/Western Union
Supply Ability: 200 set/month
Contact Now
Detailed Product Description

AATCC Fabrics Testing Equipment Cabinet Type Electric Peeling Strength Tester, Textiles Testing Equipment

Application scope

Various kinds of peeling strength test of adhesional lining cloth, multi layer combined fabrics, hot melt adhesive lining and garment materials, lining cloth and shell fabircs, coatings.

Standards

FZ/T 01085,FZ/T 80007.1,AATCC 136, FZ/T 01010,FZ/T60011

Features

CRE principle, microcomputer control, LCD display, thin film board

Vertical cabinet structure, nice appearance, stable performance

Step servo motor driven, reduction box equipped with timing belt, accurate and stable test

Equipped with pc communication port, professional analysis software

Clamp distance automatic position by parameters setup

Unique Multithread processing for test and data processing

Technical Specifications

Sampling frequency:1000Hz

Force measuring range:.1%~100%F.S

Model

5

10

50

Full range

50N

100N

500N

Test accuracy: ≤0.2%F·S

Stretch rate: 50~1000mm/min

Max elongation: 800mm

Clamp width: 60mm

Power supply: AC 220v, 50hz, 200w

Overall size: 520×400×1600mm

Net weight: 60kg
