Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | China |
| Brand Name: | SRI |
| Certification: | ISO 9001 |
| Model Number: | NZ-500 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 20000-30000USD |
| Packaging Details: | Polywood packing |
| Delivery Time: | 15-25 working days |
| Supply Ability: | 30sets/Month |
High temperature CCTV system, Kiln camera, Furnace Camera system
Description

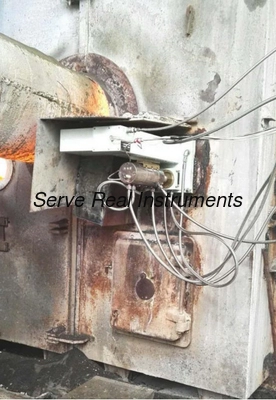

The high temperature industrial television is kind of a special CCTV used in high temperature environment. especially suitable for using in cement kiln burner and grate cooler blanking, iron and steel plant furnace, annealing furnace, heat treatment furnace, gasifier, garbage incinerator and other industrial furnace (furnace wall thickness about 500mm). it’s more suitable to be used in the place that not suitable to be cooled by water. The system adopts dual-channel optical path structure, integrates the color CCD and near-infrared CCD to work out a full vision real time monitoring system.
System Features
Quick determination of the workpiece position inside furnace, surface temperature
Unaffected to detection distance
Quick detection, high measuring accuracy, wide measuring range
Integrates near-infrared camera, computer, traditional industry television
Real time display any 32 points temperature in the monitoring menu
Traditional video & thermal imaging dual sync output
Monitoring area temperature up or drop real time alarm

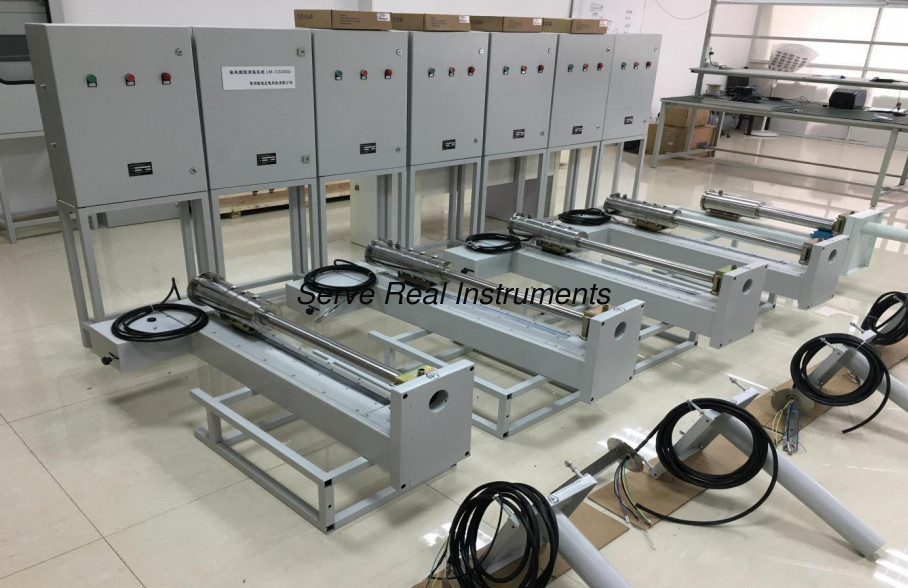

Detection unit automatic entry & exit controlled by PLC
Automatic exit respond to failure of power supply, compressed air, or temperature Over-limit to enable automatic protection
Technical specifications
| Performance | Technical characteristics | Performance | Technical characteristics |
| Lens field of view | Horizontal 72°, vertical 54 °, diagonal 100 ° | Temperature range | 600C to 2000C |
| Lens aperture | Electric or manual | Temperature points | 32 |
| Lens aperture | 1/2 " | Temperature measurement accuracy | ±1% |
| Image sensor | 600 lines or more | Output | 4~20mA |
| Camera resolution | Rodless cylinder / electric | Computer operating system | Windows 2000or XP |
| transmission | Import special heat-resistant alloy | Computer memory | 1G above |
| Operating ambient temperature | Furnace temperature | ≦2000℃ |
| Control system | ≦70℃ | |
| Automatic exit mechanism | Automatic exit | Power failed, gas failed, over temperature, low water pressure |
| Exit travel | 500mm | |
| Manual extension exit function | Yes | |

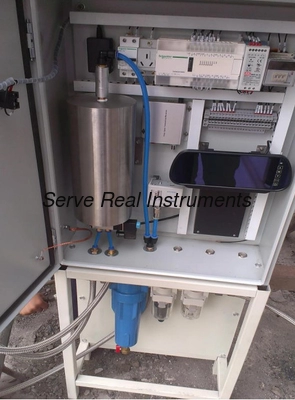

| Control device |
PLC control |
8 input value, 4 output |
| Two degree control | Onsite / control center | |
| Power supply | AC220V±10%, 50Hz | |
| Air supply | Compressed air input pressure | 0.2~0.7MPa |
| Compressed air input temperature | ≦35℃ | |
| Compressed air min flow | 0.1~0.4M³/min | |
| Imaging | Resolution | 650line |
| Signal to noise ratio | 42db | |
| Field view angle | Default | 17°-81C° |
| Cable | Power cable | AVV3×1 |
| video cable | SYV-75-5 | |
| control cable | AVPV6×0.5 | |
| baseplate cooling water flow | 0.2M³/h | |
| Vortex tube | When the compressed air input pressure higher than 0.35Mpa, the compressed air exit temperature difference is 23 degree C | |
| Installation distance | Max distance between Control device to automatically exit is 10m, the max distance between center control to field is 250M. | |
