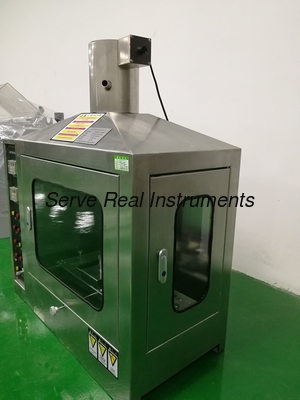

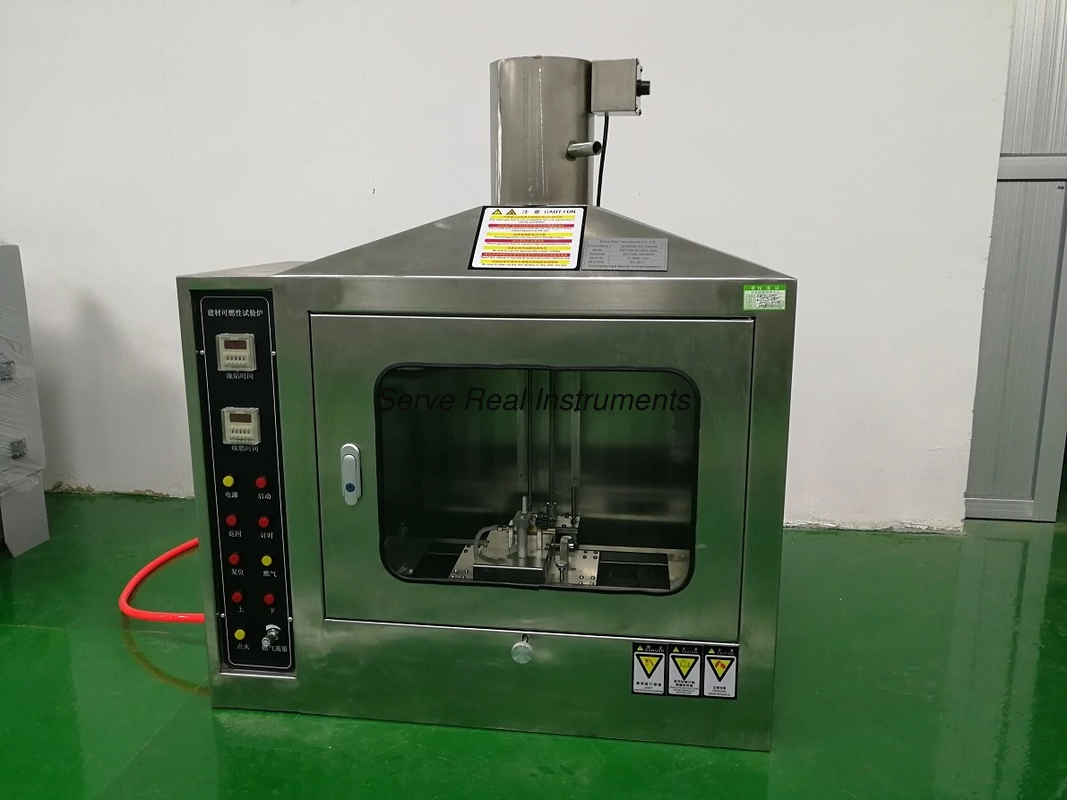

Flammability Chamber ISO 11925-2, Construction material flame test chamber
Standards: ISO11925-2:2002 E
This Flammability Chamber is used to test the flammability properties of construction material and other materials, meets the GB8626 and ISO11925-2:2002 standards. It adopts the Kleinbrenner method, using vertical small flammule to burn the construction material to test the B degree construction material flammability.
Ergonomics operation design
1.5mm steel sheet with plastic spray treatment
Double reinforced glass door for double angle observation
2 kinds different type nickel plating sample clamp
Flame height adjusted by rotor flow meter
Vertical flame source or 45 degree incline
Equipped with flame measuring ruler
Sample support can be moved in up down left right direction
Highly automation degree, high accuracy, easy operation
Natural ventilation opening located in chamber bottom
| Ambient Temperature | 15℃~25℃ | |
| Relative humidity | ≤85% | |
| Sample size | 250mm×90mm 250mm×180mm, thickness ≤60mm | |
| Material made | Mirror SUSsheet | |
| Sample clamp | two U type SUS frame, thickness 5mm | |
| Gas duct air flow rate | 0.7m/s, ±0.1m/s | |
| Power supply | AC 220V, 50HZ, 100W | |
| Air source | liquefied petroleum gas , propane with over than 95% purity | |
| Bunsen burner Flame time | 15s/30s | |
| Control mode | MCU control ,digital display High pressure electric ignition system, servo motor control, auto ignition, reset | |
| Burner | Hole size Φ0.17mm, Bunsen burner flame length 20mm±1mm, can incline to 45 degree | |
| Flame applying time | (1s-99 s)±0.5s, freely adjustable, ±0.2s | |
| Chamber dimension | 710 W× 400 D× 600mm H | |
Packing List
| Main machine | 1set |
| User manula | 1pc |
| Certificate | 1pc |
| Power cable | 1pc |
| Gas pipe | 1pc |
| Clamps sleeve | 2pcs |
| Flame height measuring ruler | 1pc |
