| Place of Origin: | China mainland |
| Brand Name: | SRI |
| Certification: | ISO 9001 |
| Model Number: | MLS |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 1000USD |
| Packaging Details: | Polywood case |
| Payment Terms: | Western Union, T/T, D/P |
| Supply Ability: | 100sets/Month |

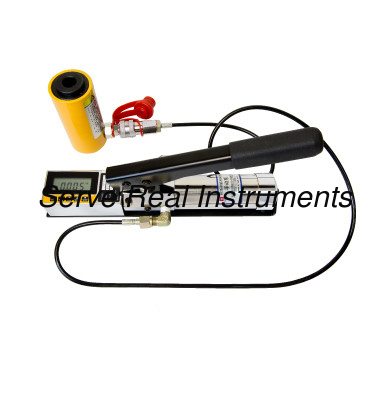

It’s a portable anchor bolt pull out tester which can be used to test the anchoring force of anchoring rods, steel rod, expansion bolts and other anchoring device.
LCD display with backlight
Peak maintain
Can store up to 200 units data
Overload protection device guarantee no damage to oil cylinder when no load.
| Oil cylinder center hole | 18mm |
| Oil cylinder stroke | 50mm |
| Measuring range | 0-10kn, 0-30kn, 0-50kn |
| Load min readout | 0.001kn |
| Weight | Manual pump 2kg, oil cylinder 2kg, total weight 7kg |
| Common anchorage device | Φ6-12 |
| Test accuracy | ±1% |
Manual pump, oil cylinder, anchorage device Ø6- Ø12, pull rod, USB cable, Aluminum case
