| Place of Origin: | China |
| Brand Name: | SRI |
| Certification: | ISO 9001 |
| Model Number: | KTS-2000 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 20000USD-40000USD |
| Packaging Details: | polywooden package |
| Delivery Time: | 15-30 working days |
| Supply Ability: | 20sets/month |
Description

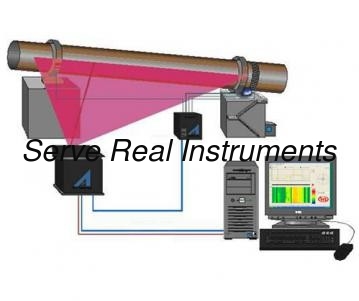

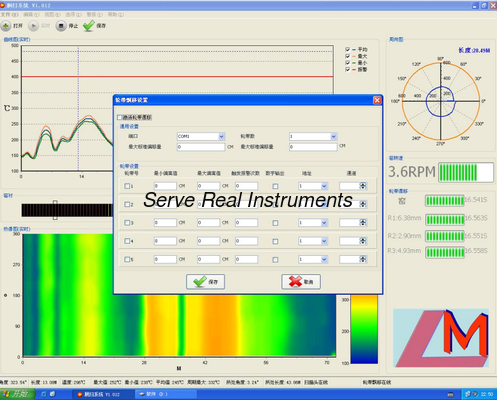

The Kiln temperature infrared scanning system is an important detection equipment to ensure safe and reliable operation of rotary kiln, so infrared temperature scanner is required to features fast detection speed, accurate temperature acquisition, reliable and stable performance under harsh environmental conditions; The whole system features quick data update, friend operation interface, it can provide abundant detection information, historical records and analysis methods, and judgment of rotary kiln status.

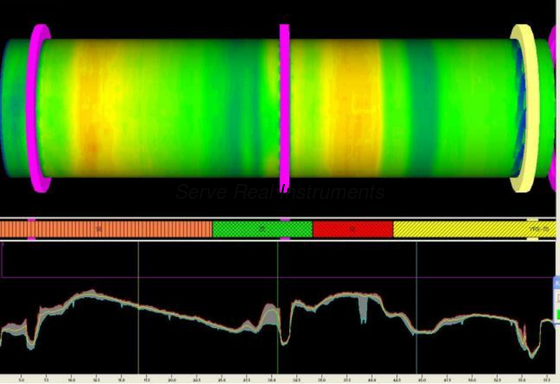

The KTS-2000 system is specially designed to detect the running status of rotary kiln and can accurately detect the hot spots generated by the falling off of the refractory bricks of the rotary kiln, so as to avoid the high frequency loss caused by the kiln damage and greatly prolong the service life of the kiln.
Technical specifications
| Scanning Scope | >60m |
| Point response time | 20us |
| scanning frequency | 20Hz |
| Temperature measurement accuracy | ±2℃ |
| Repeatability | ±1℃ |
| Scan cycle | 1 Circle of kiln |
| Thermal resolution | 500: 1 or above |
| Scanning points | 1250 dot/line |
| Target size |
Max 21 cm(when scan scope is 60m) |
| Temperature measuring range | 100℃~500℃(max 600℃) |
| Temperature resolution | ＜1℃(200℃black) |
| Optical resolution( 90% power) | 150: 1 |
| Hot spot detection( 50% power) | 450: 1 |
| Scan angle | 90 degree (self -adaptable, 60~120 adjustable) |
| Scan mode | 0.3m~limitless |
| Scan frequency | optical line scanning(25 Line/sec) |
| Response kiln rotation speed | 8~40HZ, typically 25HZ |
| Image number of pixels | 80000(400*200) |
| Image fresh frequency | equivalent to kiln rotation speed |
| Infrared detector |
USA InfraRed MCT |
| Infrared detector type | HgCdTe(MCT ), degree 2 |
| Spectrum range | 2. 2um~5. 6um |
| A/D converter | 12Bit(72db) 0. 5MH |
| Sampling point | z 1024 |
| Working mode | Continuous |
| Ambient temperature/humidity |
-20℃~ 55℃, No condensation |
