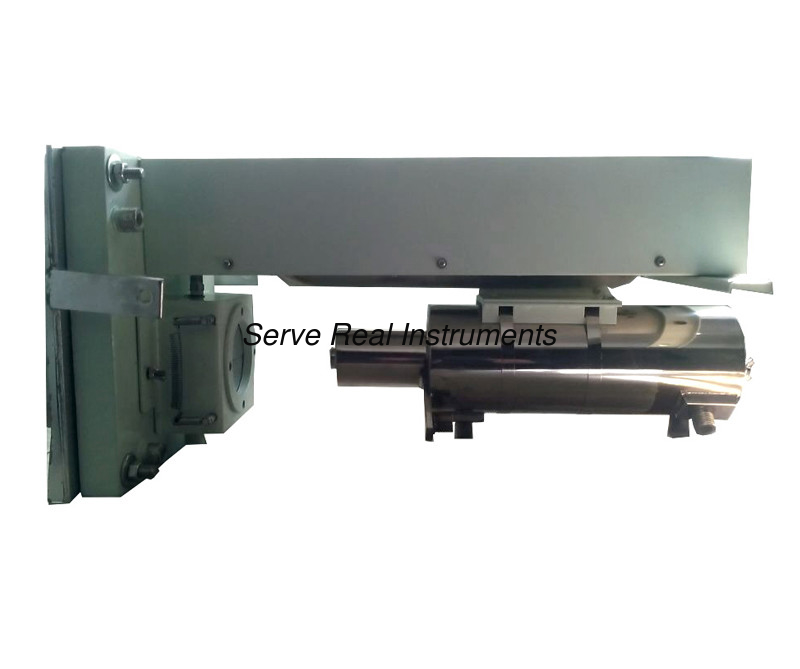

Float glass plant furnace camera, High temperature CCTV system

Introduction

Suitable for glass furnaces such as float line, horseshoe type, etc.

The probe cover extends to the furnace wall, and the field of view should be less than 45 degrees.

The probe cover is made of stainless steel material with good corrosion resistance

Special dust-proof design, no dust gatheron the lens

Special water cooling design, work normally even under poor water quality conditions

High-temperature pinhole zoom lens with a horizontal resolution of more than 1.3 million pixels and can withstand 350 degrees without cooling.

Automatically extends/exits of probe

High temperature resistant cylinder, good reliability

Probe cover automatically exits when there is an unexpected situation in the cooling water/gas or power supply

Probe movement can be controlled at site or center control room

System can be controlled by DCS

Manual zoom high-temperature pinhole lens are optional to meet the observation requirements of different kilns and different production processes

Electric zoom high-temperature pinhole lens can be used to remotely control the size range and sharpness of the image

Automatic forward/exit function

a. When the temperature in the protective cover exceeds 55℃, the probe cover will exit automatically

b. When the compressed air input pressure is lower than 0.3Mpa, the probe cover will exit automatically

c. When the input flow of cooling water of the probe cover is lower than 5L/min, the probe cover will exit automatically

d. When the external power supply is cut off, the probe cover will exit automatically

e. When an exit signal is sent from the control room or on-site control device, the probe cover will exit automatically
