| Place of Origin: | China mainland |
| Brand Name: | SRI |
| Certification: | IP68 Exd IIC T6 Gb |
| Model Number: | BQ500Ex |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 1000-2000USD |
| Packaging Details: | Wooden case |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100set per month |
| Protection Degree: | IP68 | Housing: | Stainless Steel |
|---|---|---|---|
| Installation: | Ceiling Installation, Wall Bracket Installation | Communication: | RS-485 |
| Application: | Industry Online Monitoring | Cusomized: | Yes |
Introduction

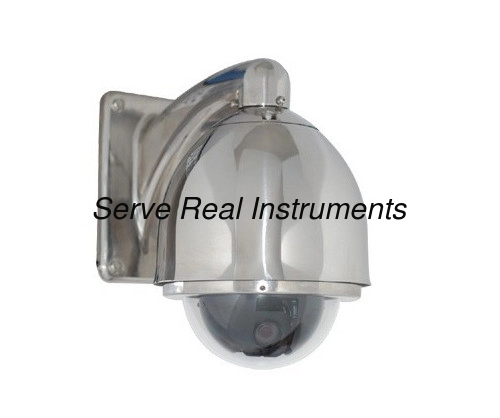

-Advanced explosion-proof monitoring equipment
-The shell is made of stainless steel
-Can automatically identify a variety of integrated camera cores
-360° continuous horizontal rotation, speed up to 300°/S
-Perfect multi-language function menu
-Multiple scanning modes, rich and practical functions
-Wall, ceiling or ceiling installation mode optional
-Protection class IP68
-All-weather indoor and outdoor use
Features
-Can be used alone in an area with flammable and explosive gases.
-Integrated color cameras that can automatically recognize various brands including Hitachi, Sony, Sanyo, Samsung, etc.
-Multi-language menu with powerful functions
-Support multiple communication protocols and communication rates, and can respond to commands from various hosts.
-100VAC～240VAC wide voltage working range.
-Can be continuously rotated 360° in the horizontal direction and 0°～90° in the vertical direction. During manual operation, the rotation speed is smoothly variable within the range of 0.1°/s～300°/s, and the fast moving objects can easily be tracked, can freely capture moving objects at the telephoto end. When calling the preset position, the speed can reach 400°/s.
-The electro-polished outer surface, beautiful and practical.
-Can work stably for a long time under the temperature condition of -20℃ to +60℃.
Specifications
Material: Stainless steel 304 or 316L
Surface treatment: Electric polishing
Protection class: IP68
Horizontal rotation: 360°continuous rotation
Vertical rotation: 0°～ 90°
Horizontal rotation speed: 0.1°/S ～ 300°/S smooth shift
Vertical rotation speed: 0.1°/S ～ 120°/S smooth shift
Speed matching: The rotation speed is automatically adjusted according to the amplitude of the keyboard joystick and the lens magnification
Preset rotation speed: 400°/S
Weight: 12Kg
Installation: Ceiling installation, wall bracket installation
Input voltage: 100VAC～240VAC, 50/60Hz
Working current: ≤300mA
Power consumption: ＜30W
Communication method: RS-485
Communication rate: 2400/4800/9600/19200 bps
Communication protocol Various protocols including Pelgo: D/P protocol
Address: 0～255
Number of presets: 128
Preset accuracy: ±0.1°
Video output: 1.0±0.2Vp-p / 75Ω
Electrical connection: 6-core integrated cable to connect video, power supply, control
