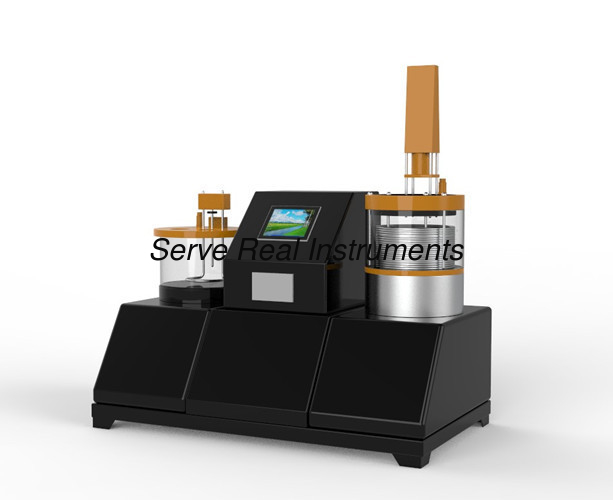

USP41 651 method Medicine Congealing Point analyzer Drug test instrument

USP41 651 method Medicine Congealing Point analyzer Drug test instrument

USP41 651 method Medicine Congealing Point analyzer Drug test instrument

Product Details:

Place of Origin: China mainland
Brand Name: SRI
Certification: ISO 9001
Model Number: YN-203B

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 5000-10000USD
Packaging Details: Wooden case
Delivery Time: 10 working days
Payment Terms: T/T
Supply Ability: 50set per month
Contact Now
Detailed Product Description
Display: LCD Method: USP41 651
Application: Drug And Medicine Test Power Supply: AC220V±10%, 50Hz

USP41 651 Congealing temperature tester Congealing Point analyzer Drug test instrument


This congealing point tester is designed and manufactured according to the USP40, it determines the peak temperature at which the drug stays in a short time when the liquid condenses into solid. Some drugs have a certain degree of freezing point, when purity changes, the freezing point changes. Determining the freezing point can distinguish or check the purity degree of drugs.




Embedded system design, automatic test in the whole test process

Automatic print, test results can be exported through u disk

Colorful touch screen; test results can be stored; historical data can be reviewed


Technical specifications


Power supply: AC220V±10%, 50Hz

Cooling tank: Dual layer vacuum glass water bath

Cooling tank temperature: - 20℃~+150℃(can be customized)

Control accuracy: ±0.5℃

Bath liquid stirring: automatic stirring,power 6W, 1200r/min

Refrigeration system: New type refrigeration compressor

Sample stirring: sync reduction motor, 60hz

Ambient temperature: ≤30℃

Relative humidity: ≤85%

Total power: <2000W

Overall dimension: L800*W600*H800mm,

Net weight: 50kg
