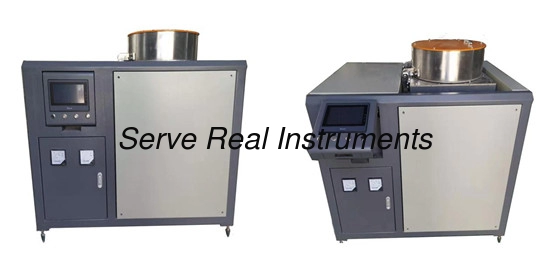

Electric XRF fusion furnace 6 position

Electric XRF fusion furnace 6 position

Electric XRF fusion furnace 6 position

Product Details:

Place of Origin: China mainland
Brand Name: SRI
Certification: ISO 9001
Model Number: FM-DR06

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 20000USD
Packaging Details: Wooden case
Delivery Time: 15-30 working days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 5set per month
Contact Now
Detailed Product Description
Sample Station: 4,6 Max Temperature: 1250℃
Application: XRF Analysis Heat Way: Silicon Carbon Rod Heating


This fusion machine uses silicon carbon rod heating method for XRF sample preparation, touch screen display and control, easy operation, high automation, fast temperature rise, accurate temperature control, max temperature up to 1250℃.




Silicon carbon rod heating

Touch screen+PLC+AI, diagnostic self check,

Simultaneously processing of furnace swing and sample holder rotation

Multi protection function, thermocouple broken, over temperature, over limit, software-hardware dual protection

Good repeatability of samples, allow halfway sample adding


Technical specifications

Temperature rise seed: Average 30℃/min
Rated temperature: 1100℃(max 1250℃)
Temperature accuracy: ±1℃when in heat preservation (S type platinum rhodium thermocouple)
Sample station number: 6
Furnace swing angle: Back and forth swing 0~40°, software adjustable
Supporter rotation rate: 0~25rpm(inverter stepless speed regulation, can rotate forward and backward)
9pcs working curve available
Timing setup
Front rest time set range: 0~160min optional
Swing time set range:0~160min optional
Back rest time set range: 0~160min optional
Net weight:390kg

Overall size: 1150mm×750mm×1100mm
Total power: 10kw
Power supply:Heating AC 380V, 50HZ, control AC 220V, 50HZ

Rated power: 30A
