Place of Origin: | China |
Brand Name: | SRI |
Certification: | ISO 9001:2000 |
Model Number: | FX-TA |
Minimum Order Quantity: | 1set |
---|---|
Price: | 8000-25000USD/set |
Packaging Details: | Standard exporting package |
Delivery Time: | 5-10 working days |
Payment Terms: | T/T, L/C, PAYPAL |
Supply Ability: | 200 sets/month |
Minimum Order Quantity: | 1set |
Function: | Texture Analysis | Category: | Food & Drug Test |
---|---|---|---|
Standards: | AACC 74 AOAC | Software: | Yes |
Chinese Pharmacopoeia 2020 edition
Comply with current Chinese GMP regulations
National Standard "Food Additive Gelatin" GB6783-2013
National Standard "Medicinal Gelatin Hard Capsule" GB13731
National Standard "Food Additive Gelatin Kederan Gum" GB28304-2012
National Standard "Frozen Surimi" GB/T36187-2018
Light Industry Standard "Edible Gelatin" QB/T4087-2010
Agricultural industry standard "Determination of meat tenderness and shear force determination method" NY/T1180-2006
AACC 74-09 Bread Hardness Test (American Cereal Chemistry Association)
AOAC (American and European Gel Association)

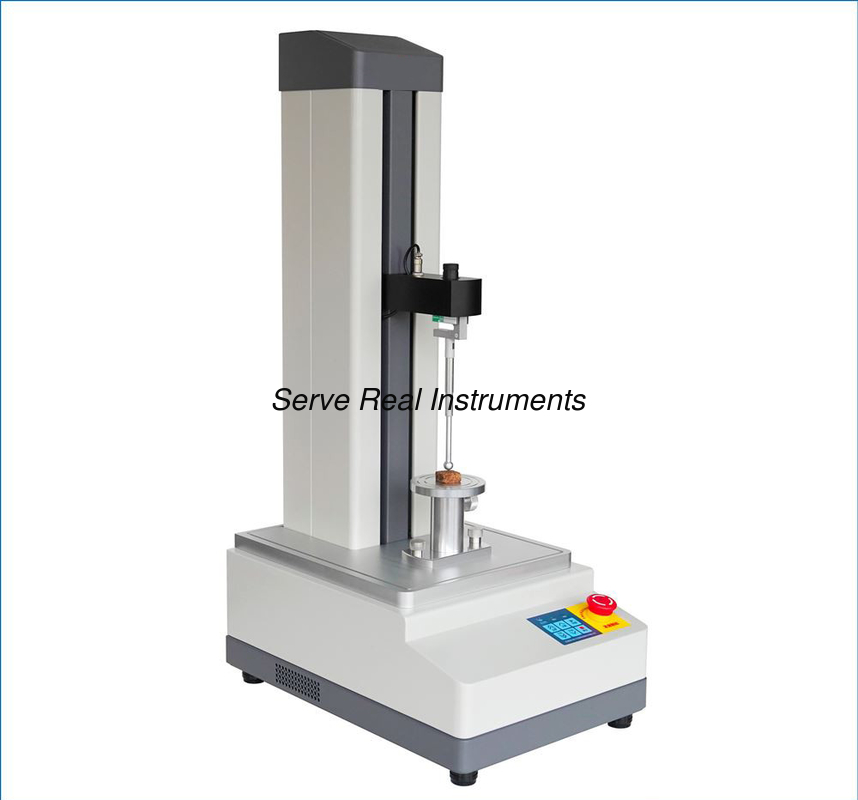

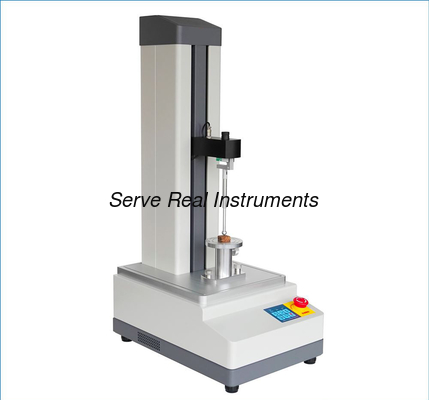

2.1 It’s a research-type texture analyzer with powerful functions, high measurement accuracy, stable and reliable performance
2.3 The force sensor can be replaced quickly and safely. Through the replacement of the force sensing element, the detection range can be changed, and the sensing analysis can be changed at the same time to adapt to different sample analysis.

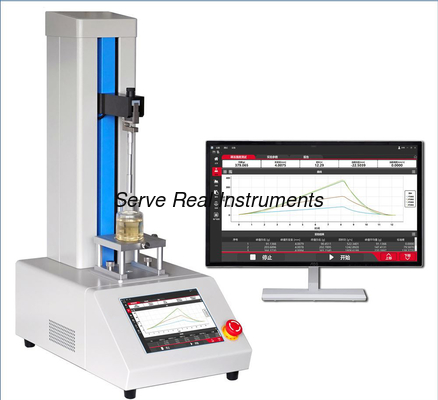

2.4 It is connected to the computer for control and equipped with powerful analysis software to realize fast, precise and accurate physical property measurement.
2.5 Equipped with complete set of special fixtures and accessories, which can meet the various needs of users.
2.6 Acquisition system with excellent texture performance has 4 simultaneous channels, 24bit resolution, and a single channel sampling rate of up to 102.4KS/s, ensuring that samples can be captured in real time and accurately during texture measurement. Any changes that occur during the test, avoid missed or misjudged, top-level scientific research measurement accuracy.
3.1 Foods: noodle products, rice products, aquatic products, baked foods, grain and oil foods, cereals, fruits and vegetables, gelatin, candy, dairy products, meat products, snack foods, pet foods.
3.2 Biopharmaceuticals: tablets, capsules, sugar coatings, films, bio-adhesives, alginate gel beads, Chinese medicinal materials, proprietary Chinese medicines, pastes, pastes, bead burst test, needle penetration test, injection needle quality test, Medical tapes, inhalers, biological materials, pharmaceutical packaging materials, etc.
3.3 Chemicals: cosmetics, chemical materials.
3.4 Materials: packaging materials, films, gel films, sheets, medical materials, etc.
3.5 Test functions: hardness test, strength test, biomechanical test, elasticity test, tenderness test, freshness test, peel test, creep characteristic test, relaxation characteristic test, compression test, tensile test, full texture test, etc. .
3.6 Test index: hardness, brittleness, tenderness, adhesion, elasticity, toughness, cohesion, chewiness, ductility, recovery, firmness, tensile strength, rupture strength, shear strength, freezing strength, etc.
4.1 Load range: 0~25Kg (0~250N) (optional: 1, 2, 5, 10, 25, 50, 100 Kg and other specifications)
4.2 Load Force resolution: 0.0001g
4.3 Displacement range: 410mm
4.4 Displacement resolution accuracy: 0.0001mm
4.5 Full-scale positioning accuracy: 0.001mm ensures precise detection of subtle changes in sample shape, reaching the research level
4.6 Detection rate: 0.001~80mm/s
4.7 Data acquisition rate: up to 102.4KS/s, four-channel simultaneous reading. Sampling rate optional: 200, 500, 2000, 5000, 10000, 15000, 30000 groups/sec
4.8 Accessories, fixtures, probes: more than 100 kinds of conventional general options are available. It can also be customized according to user needs
4.9 Dimensions: Length 480×330×875mm
4.10 Weight: 32Kg
5.1 Provides hierarchical authority management: three levels, multiple users (user name + password login).
5.2 Automatically completes the audit trail record: the system database automatically protects all traceable measurement results and processes.
5.3 Protection functions: emergency braking, upper and lower limit control, overload protection of the force sensor unit, and detection data encryption.
5.4 With functions of self-calibration, self-measurement, self-correction and self-repair
5.5 Equipped with a high-definition camera, which can record the whole process of the test of important samples, and save it in a traceable database together with other test data.
5.6 Test playback: The software automatically records the whole process of sample testing (including synchronous video recording), and provides intelligent retrieval functions with multiple conditions. Tests in any period can be traced, and data restoration, curve drawing and synchronized video playback can be performed to observe and analyze the test details of the samples.
5.7 Can display three curves of power-time, power-distance, and distance-time. The curve contains a ruler, which can be freely zoomed in or out of the graph, or automatically adjusted by the system, can mark key data points, and can automatically calculate the area of the selected plot.
5.8 Comprehensive test mode program editing functions: run, preset, repeat, loop, clear, zero calibration, assignment, variable, formula, calculation, playback, comparison, annotation, etc. Through the editing of these functions, users can customize the detection mode and build various test models.
5.9 Test results can be directly exported to various file formats such as Excel, Word, PDF, etc., and operations such as drawing, saving, comparing, and generating professional reports can be performed.
5.10 Friendly operation interface: menu bar, tool bar, status bar, display bar, curve frame, video frame, experiment process are clear, and the operation buttons are convenient and quick. Chinese and English display version one-key switch.
6.1 Full texture test
6.2 Tensile test
6.3 Bend test
6.4 Shear test
6.5 Puncture test
6.6 Gel strength test
6.7 Surimi gel test
6.8 Carrageenan test
6.9 Can Tran Glue Test
6.10 Meat tenderness test
6.11 Single compression test
6.12 Cycle test
6.13 Relaxation performance test
6.14 Creep performance test
6.15 Custom test
6.16 Verification of measurement accuracy of the instrument itself
Parameter | FX-TA-10H | FX-TA-10HD | FX-TA-25H PRO |
Load Measure range | 10Kg (1,2,5,10,20,50Kg optional) | 10Kg (1,2,5,10,20, optional) | 25kg (0~250N) (Optional: 1, 2, 5, 10, 25, 50, 100 Kg, etc. specifications) |
Load resolution | 0.001g | 0.0001g | |
Displacement range | 0~310mm | 0~410mm | |
Displacement readout | 0.001mm | 0.001mm | 0.0001mm |
Detection rate | 0.01mm/s~30mm/s | 0.01mm/s~40mm/s | 0.001~80mm/s |
Data acquisition rate |
Up to 4800 groups per second, optional after optimized filtering (200sps, 500sps, 1500sps, 2000 sps)
|
Up to 4800 groups per second; 200, 500, 1000, 2000 groups per second can be selected after optimal filtering | Up to 102.4KS/s, four-channel simultaneous reading. Sampling rate optional: 200, 500, 2000, 5000, 10000, 15000, 30000 groups/sec |
Audit & track of data | / | / | Yes |
User authority management | / | 3-level | 3-level |
