Differential Scanning Calorimeter DSC Thermal analytical instrument ISO 11357

Differential Scanning Calorimeter DSC Thermal analytical instrument ISO 11357

Differential Scanning Calorimeter DSC Thermal analytical instrument ISO 11357

Product Details:

Place of Origin: China mainland
Brand Name: SRI
Certification: ISO 9001
Model Number: DSC-300

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 1000-10000USD
Packaging Details: Wooden case
Delivery Time: 5-10 working days
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 100sets/Month
Contact Now
Detailed Product Description
Standards: ISO 11357 Functions: Thermal Analytical
Category: Thermal Analytical Instrument HS CODE: 9031809090

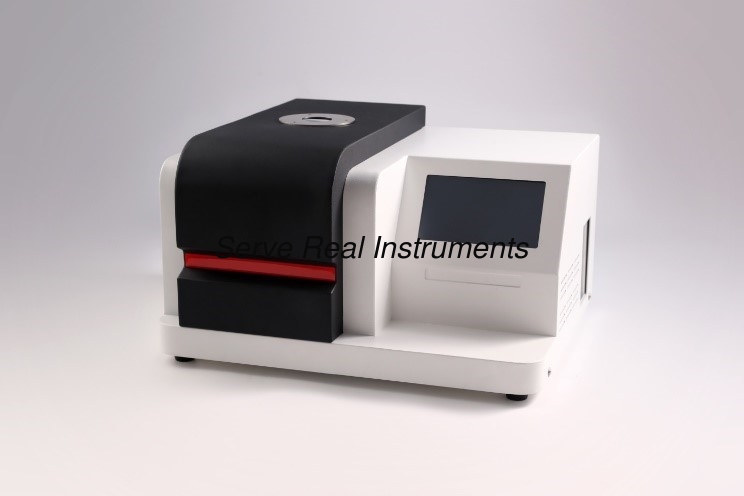

Differential Scanning Calorimeter DSC Thermal analytical instrument ISO 11357


Meet the following standards (not limited to):

GB/T 19466.2–2004/ISO 11357-2:1999 part 2

GB/T 19466.3–2004/ISO 11357-3:1999 part 3

GB/T 19466.6-2009/ISO 11357-3:1999 part 6


This is a high accurate differential Calorimeter. The sensor adopts imported E-pair with high sensitivity. The signal acquisition circuit is shielded and protected, with strong anti-interference and high baseline stability. The differential scanning calorimeter is of touch screen type, which can be used for glass transition temperature test, phase transition test, melting and enthalpy value test, product stability test and oxidation induction period test. Wide application range



1. Industrial-level 7-inch touch screen displays rich information.

2. New metal furnace body structure, better baseline and higher accuracy. The heating adopts indirect conduction mode, with high uniformity and stability, and reduces pulse radiation, which is superior to the traditional heating mode.

3. USB communication interface has strong versatility, reliable and uninterrupted communication, and supports self-recovery connection function.

4. Automatic switching of two-way air flow, fast switching speed and short stabilization time. At the same time, add a protective gas input.

5. The software is simple and easy to operate.


Technical specifications

1. Temperature range: room temperature~600 ℃ air cooling

2. Temperature resolution: 0.001 ℃

3. Temperature fluctuation: ± 0.001 ℃

4. Temperature repeatability: ± 0.01 ℃

5. Heating rate: 0.1~100 ℃/min

6. Constant temperature time: program setting ≤ 24h

7. Temperature control mode: temperature rise, constant temperature, temperature drop (fully automatic program control)

8. Data scanning: cooling scanning

9. DSC range: 0 ~ ± 600mW

10. DSC resolution: 0.01uW

11. DSC accuracy: 0.01mW

12. Working power supply: AC220V/50Hz or customized

13. Atmosphere control gas: nitrogen, oxygen (automatic instrument switching)

14. Gas flow: 0-300mL/min

15. Gas pressure: 0.2MPa

16. Display mode: 24bit color, 7-inch LCD touch screen display

17. Data interface: standard USB interface

18. Parameter standard: equipped with reference materials (indium, tin), users can calibrate the temperature by themselves

19. The upper computer is a three-in-one operation software, which is also suitable for the combination of thermogravimetric and synchronous instruments.

20. The instrument has multiple sets of thermocouples, one set of test sample temperature, one set of test furnace temperature, and one set of test instrument internal ambient temperature

21. Cooling device: air-cooled cooling device (optional with semiconductor and liquid nitrogen refrigeration).


Differential Scanning Calorimeter DSC Thermal analytical instrument ISO 11357


                                                                  Furnace structure
