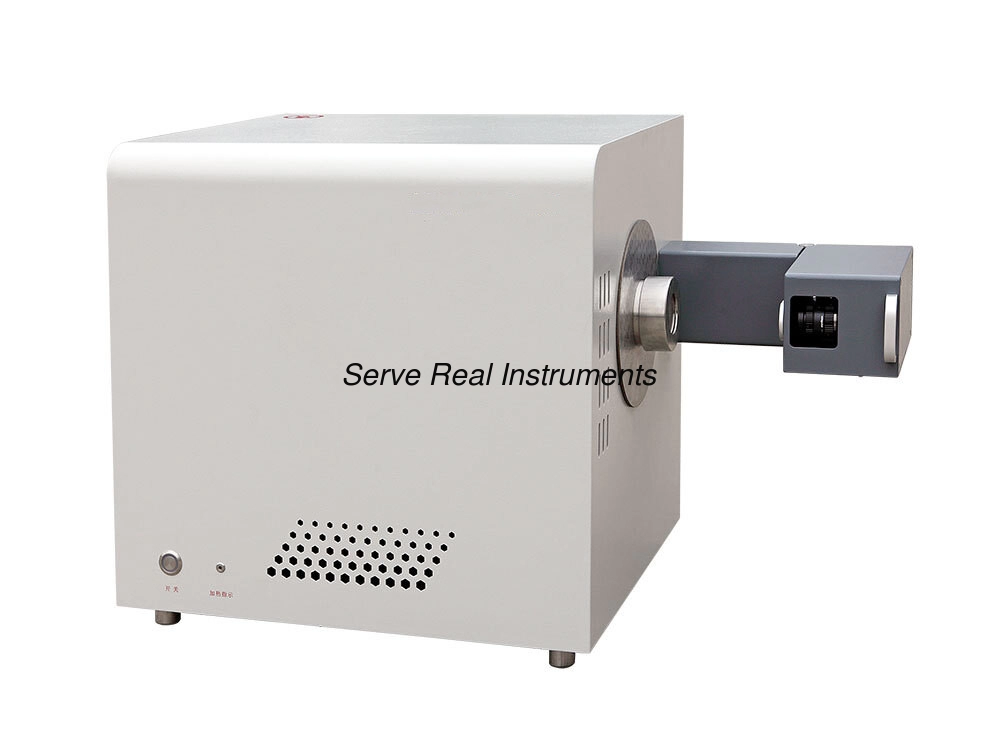

Coal Ash fusibility tester ISO 540 coal coke analytical instrument

Coal Ash fusibility tester ISO 540 coal coke analytical instrument

Coal Ash fusibility tester ISO 540 coal coke analytical instrument

Product Details:

Place of Origin: China
Brand Name: SRI
Certification: ISO 9001:2000
Model Number: MJ-AF

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 5000-15000USD/set
Packaging Details: Standard exporting package
Delivery Time: 10-15 working days
Payment Terms: T/T, L/C, PAYPAL
Supply Ability: 50 sets/month
Minimum Order Quantity: 1set
Contact Now
Detailed Product Description
Function: Melting Process Test Category: Coal Coke Analysis Instrument
Standard: ISO 540


Standards: ISO 540:1995


The Coal Ash fusibility tester is used to test the melting process of coal ash and other non single compounds without fixed melting point.



◎ A special sample sending and transferring mechanism is adopted to complete automatic sample sending. The user only needs simple operation to complete the sample sending and sampling of the ash cone;

◎ The step motor controlled by trapezoidal speed is used to send the sample to the correct position to ensure that the ash cone is not tilted. The high-precision angle encoder is used to feed back the position of the ash cone, which can be fine adjusted at any time;

◎ Five million pixel industrial camera is used to automatically track the whole test process and present high-definition test images;

◎ The demist and dust removal device is adopted to ensure that the lens is free of cleaning and improve the maintenance convenience and image clarity;

◎ Five samples can be tested at the same time, and all characteristic temperatures can be automatically identified;

◎ Special heating elements and temperature resistant and thermal insulation furnace materials are used, and the maximum working temperature can reach 1650 ℃;

◎ The closed cross shaped corundum tube structure is adopted to truly meet the test requirements of multi atmosphere;

◎ New image processing algorithm is used to intelligently identify each characteristic temperature point, resulting in more accurate results;

◎ Access to the laboratory management system to backup and upload test results.



Model MJ-AF-01B MJ-AF-01A
Number of samples 1~5pcs
Temperature control range 200℃~1650℃ 200℃~1550℃
Temperature control accuracy ±1℃
Experimental atmosphere Oxidation and weak reduction (carbon sealing method)
Sample feeding mode Automatic Manual
The heating rate meets the requirements of national standards
Repeatability DT≤40,ST,HT,FT≤30
Working power supply AC 220V±22V/50Hz
Power ≤2.7kW 4kw
Overall dimension (mm) 600×540×850 820×460×540
Operating Weight (kg) 102 60


Coal Ash fusibility tester ISO 540 coal coke analytical instrument
