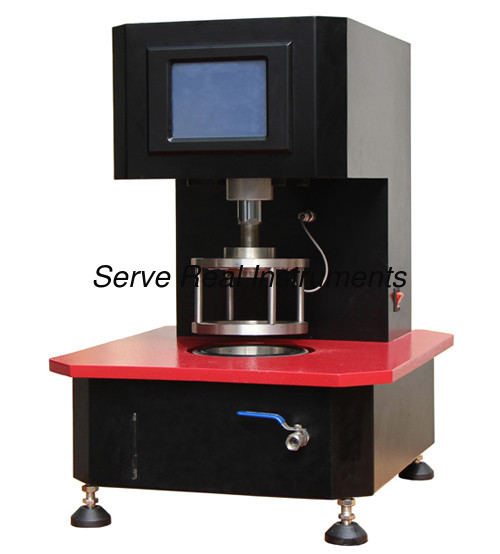

Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | jiangsu |
| Brand Name: | SRI |
| Certification: | ISO9001 |
| Model Number: | FT-812S |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 5000-5500USD/Set |
| Packaging Details: | meet standard packing requiments |
| Delivery Time: | 5-10 working days |
| Payment Terms: | TT |
| Supply Ability: | 100 set/month |
Description
It’s used to test the impervious performance of various kinds of textiles which have been treated with waterproofing work.
Standards compliance
GB/T4744-1997, ISO811, FZT01005, AATCC 127
Features
1. Dynamic feedback regulation of pressure can protect the pressure too high;
2. Wide Pressure rise speed and stepless regulation, direct setup in menu;
3. Several kinds of testing modes available, easy to analysis the products other performance
4. Panasonic servo motor and driving system, 16 digits A/D transition.
5. All aluminum alloy structure, type: bench type.
Technical specifications
1. Range: 50Kpa, 1000Kpa equips two steps sensors, increase test accuracy;
2. Sensor protection: automatic overload protection( multi-sensors auto-switch range)
3. Pressure display resolution: 1/10000
4. Sensors testing accuracy: ≤1%
5. Sample area: 100cm2
6. Pneumatic clamp: 0-300000N (step-less adjustable)
7. Pressure rise speed: 0.01Pa~10KPa/min
8. Working power: Ac 220V 50HZ 200W
9.Overall size: 420×580×700mm (L×W×H)
