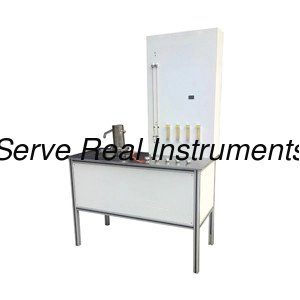

Geotextile vertical permeability tester ISO 11058 ASTM D4716

Geotextile vertical permeability tester ISO 11058 ASTM D4716

Geotextile vertical permeability tester ISO 11058 ASTM D4716

Product Details:

Place of Origin: jiangsu
Brand Name: SRI
Certification: ISO11058; ASTM D4716, GB/T15789; JTG E50 T1141; SL/T 235-1999
Model Number: GT-20

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 3500-4000USD/Set
Packaging Details: meet standard packing requiments
Delivery Time: 5-10 working days
Payment Terms: TT
Supply Ability: 200 set/month
Contact Now
Detailed Product Description

Geotextile vertical permeability tester, Geotextiles test equipment, Geosynthetics test instrument



This tester uses the constant head method to test the vertical permeability property of geotextile and other relevant products, the water head adjusting range is 0-300mm, to reduce the water head loss, it uses the box structure. It’s kind of very common geosynthetics testing instrument.


Standards compliance

ISO11058, ASTM D4716, GB/T15789, JTG E50 T1141, SL/T 235-1999



1. Transparent design for easy observation of testing process.

2. Wide compliance to different standards.

3. Box structure design enable less water head loss.

4. Water-circulation system and frequency control flow system equipped.

5. 52,100mm sample clamp equipped to avoid the discreteness of sample, and can compare with the early instruments.

6. The sample clamp can be tailor-made.


Technical specification

Sample diameter


Water head


Sample thickness


Temperature range


Over size

850×500×400 mm (L×W×H)



Power supply

AC220V   50HZ
