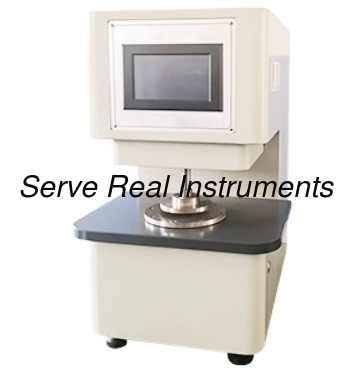

Digital Geotextiles thickness meter

Digital Geotextiles thickness meter

Digital Geotextiles thickness meter

Product Details:

Place of Origin: jiangsu
Brand Name: SRI
Certification: GB/T17636
Model Number: GT060S

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 1500-2000USD/Set
Packaging Details: meet standard packing requiments
Delivery Time: 5-10 working days
Payment Terms: TT/Paypal
Supply Ability: 200 set/month
Contact Now
Detailed Product Description

Standards: JTG E50, ISO 9863, GB/T 13761, other standard according on request



This instrument is used to test the thickness of geosynthetics and relevant materials under the condition of different pressure and set time.



Microprocessor control, large LCD display, test results print

Imported transducer guarantee high accuracy
Load value (2kpa,20kpa,200kpa) free setup
Measuring head automatic lift and fall, avoid system error caused by human factors
Real time indicating Max value, Min value, average values etc, good for user’s assessment

Technical specifications

Pressure foot: 25cm( round diameter: Ф56.42mm) or others

Pressure stabilize time: 10S  20S,30S,40S,50S, free setup

Test pressure: 2±0.01kpa;20±0.1kpa;200±0.1kpa, or others

Test thickness: 0-25mm

Resolution: 0.001mm

Test mode: single-point test and multi points test freely choose

Power supply: AC220V±10%, 100W

Overall size: 600mm*550mm*450mm
