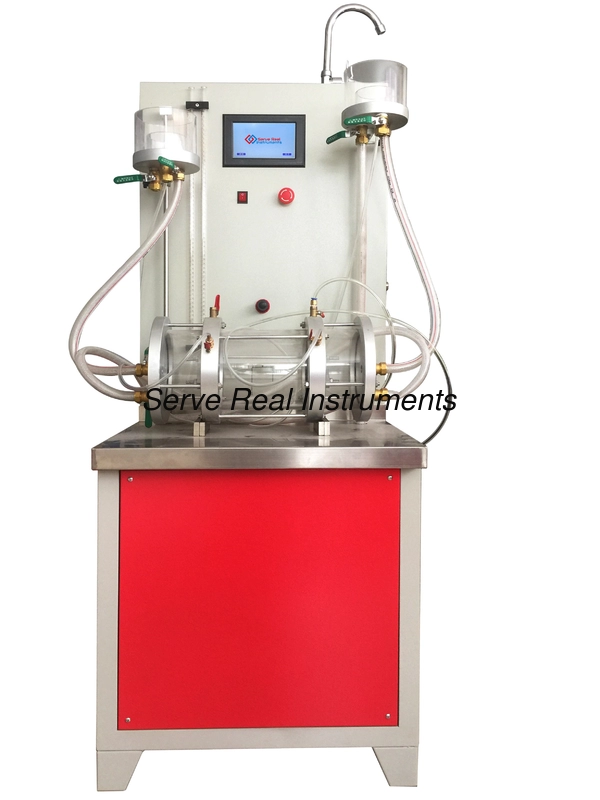

Geosynthetics horizontal permeability tester ASTM D4716 ISO 12958

Geosynthetics horizontal permeability tester ASTM D4716 ISO 12958

Geosynthetics horizontal permeability tester ASTM D4716 ISO 12958

Product Details:

Place of Origin: jiangsu
Brand Name: SRI
Certification: ISO 9001
Model Number: GT-070

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 3500-4000USD/Set
Packaging Details: meet standard packing requiments
Delivery Time: 5-10 working days
Payment Terms: TT/Paypal
Supply Ability: 200 set/month
Contact Now
Detailed Product Description
Test Material: Geosynthetics Test Standards: ASTM D4716, ISO 12958


This tester is used to determine the geosynthetics horizontal permeability under adjustable normal pressure and hydraulic gradient. It’s equipped with filter system to avoid the impurity in the water.


Standards compliance:

GB/T17633, ASTM D4716, ISO 12958, SL/T 235


Technical specifications

1. Max Sample size: 100*200*40mm(W*H*L), or tailor-made;

2. Normal pressure on the sample: 0-500kPa adjustable;

3. Hydraulic gradient adjusting range: 0-800mm;


Standard Configurations

1. Permeability pressure room: alloy aluminum pressure chamber, organic glass container, up and down latex gasket.

2. Normal pressure loading device: including accurate stainless steel pressure gauge, pressure regulating valve, air source, switchs, pipe, loading frame etc;

3. Water filtering system;

4. Water head pressure measure pipe, water supply tank, water inlet switch, water outlet measure unit or dip stool.

Note: we can supply tailor-made according to your requirements.
