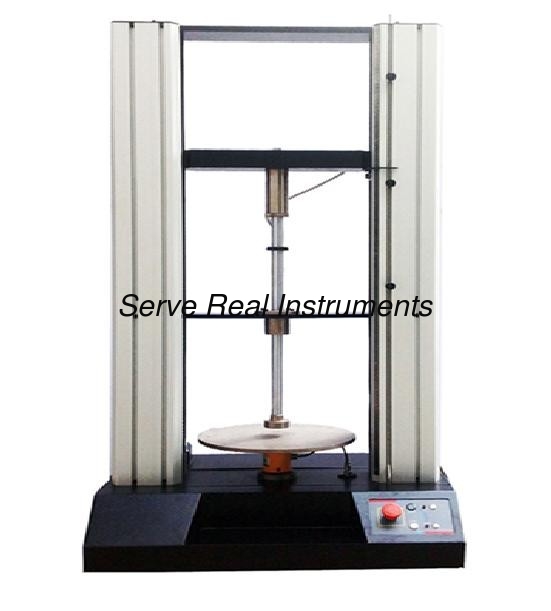

Textiles Testing Equipment Fabrics Compressive Elasticity Tester

Application scope

This compressive elasticity tester is used to test the fabrics thickness and compressive recoverability, equipped with multi kinds of pressure foot, thus can test different kinds of products in different standards.

Standards

GB/T 24442.1-2009, GB/T 24442.2-2009, FZ/T 64017-2011,FZ/T 64020-2011,FZ/T 64003-2011,GB/T 22796-2009,GB/T 24252-2009, FZ/T 81005-2006, GB/T 3820-1997, GB/T 13761.1-2009, QB/T 1089-2001,QB/T 1092-2001, GB/T 24218.2,GB/T 8168-2008

Features

CRE test method, double column structure, aluminum alloy material with enclosure

transmission mechanism comprised of Imported ball screw assembly, timing belt, timing wheel, AC servo system, stable performance and less noise.

Imported high accuracy load cell, 24bits A/D, sampling frequency 1000HZ

High accuracy displacement grating ruler for displacement measurement

32-bits cortex-m3 high performance processor

Professional but easy operation software.

Technical Specifications

Speed adjusting range: 0.1~200mm/ min

Max displacement: 250mm

Displacement error: ≤0.01mm

Force measuring range: 1%~100%F.S

Force measuring accuracy: ≤±0.2%F·S

Pressure foot parallelism: ≤±0.1%

Power supply: AC220V 50HZ 450W

Overall size: 720×520×1750mm
