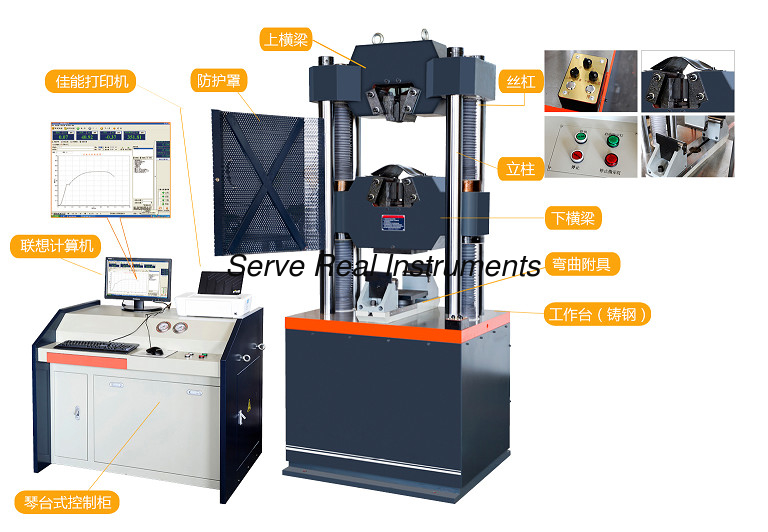

1200KN Servo control universal testing machine

1200KN Servo control universal testing machine

1200KN Servo control universal testing machine

Product Details:

Place of Origin: China mainland
Brand Name: SRI
Certification: ISO 9001
Model Number: UTM-1200D

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 30,000USD
Packaging Details: Wooden package
Delivery Time: 20-30 working days
Payment Terms: T/T, LC
Supply Ability: 50sets/Month
Contact Now
Detailed Product Description
Test Type: Tensile, Compression, Bending Control Type: Servo Control
Power Supply: AC 380V/220V, 50/60Hz Test Material: Metal

General description

This model UTM is powered by hydraulic, it’s mainly used for mechanical testing of metal and nonmetal material under normal temperature condition. It mainly can perform tensile, compression, bending, shear tests. Controlled by servo system to enable automatic control of oil flow, thus to enable precision close-loop control thus to achieve constant load, constant displacement, constant strain tests. Four robust columns to guarantee rigidness of main frame when testing; Powerful application software, test data real time indication on computer screen, different test mode can be setup, different test standards selectable according to different materials, test curve real time generation; complete test parameters presentation in report. Real time test report print output.


Technical specifications


Max nominal test load 1200 kN
Effective test load range 5%~100%F.S
Test load min readout 0.01kn
Test load accuracy ≤±1%
Displacement min readout 0.01mm
Displacement accuracy ≤±1%
Strain min readout 0.01mm
Strain accuracy ≤±1%
Tensile test daylight max 900 mm
Compression test daylight max 700 mm(not including piston displacement)
Piston stroke 250 mm
Round sample jaw dia. Φ13-Φ60 mm
Flat sample jaw thickness 0-40 mm
Flat sample max clamping width 120 mm
Plate size 204×204 mm
Bending test supporting points distance 450 mm
Bending support roller width 140 mm
Bending supporting roller diameter Φ40 mm
Piston max moving velocity 50 mm/min
Clamping way hydraulic automatic gripping
Main frame size 1210×1000×2850mm(when not work)
Controller size 1000×700×1400 mm
