| Place of Origin: | China |
| Brand Name: | SRI |
| Certification: | ISO 679:1989, GB/T 17671 一1999 |
| Model Number: | CTM-300 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 3000 USD/set |
| Packaging Details: | Polywood case |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T, L/C, PAYPAL |
| Supply Ability: | 100 sets/month |
| Power: | Hydraulic | Usage: | Compression Testing Machine |
|---|---|---|---|
| Sea Port: | Shanghai | Power Supply: | AC 380V/220V, 50HZ |
| Packing: | Standard Export Wooden Case | Data Output: | Printing Output |
| Tailor Made: | Yes | ||
| High Light: | cement mortar compression testing machine,brick testing machine,construction material testing machine |
||
Standards: GB/T17671-1999, ISO 679:1989
Introduction

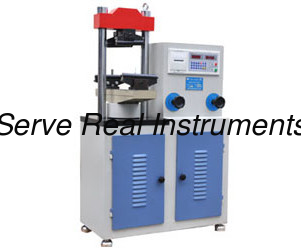

This machine is mainly used to test the cement, concrete, brick, mortar compression strength. It’s driven by hydraulic, features electric load measure, digital display, loading rate indication, max. Value maintain, overload protection, power failure data maintain. It’s kind of common material testing machine
Technical specifications
|
Max. load |
300kN |
|
Load relative error |
≤±1% |
|
Hydraulic pump rated pressure |
25MPa |
|
Platen size |
φ155mm |
|
Upper lower platen Max. distance |
230mm |
|
Piston dia. & Max. stroke |
φ125mm×80mm |
|
Motor power |
3 phase 0.75 kW |
|
Overall size( L*W*H) |
850×620×1340mm |
|
Net weight |
Approx 400Kg |
