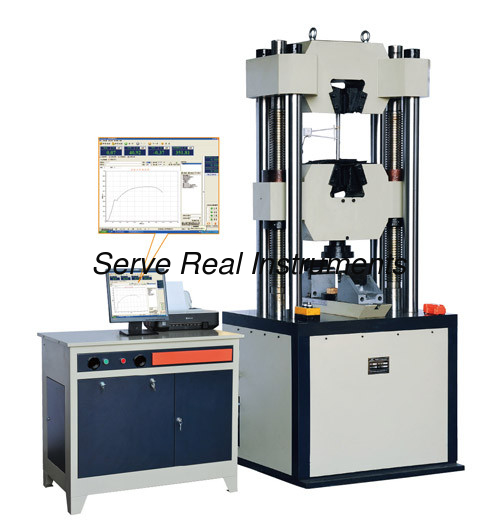

Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | Jiangsu |
| Brand Name: | SRI |
| Certification: | GB/T |
| Model Number: | UTM-100/300C |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 7000-10000USD |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 100sets/month |
| Power Supply: | AC 380V, 50HZ | Clamping Way: | Automatic Hydraulic |
|---|---|---|---|
| Process Display: | Computer | Sea Port: | Shanghai |
| Oil Control: | Open Loop Manual | Column Number: | 2 Or 4 |
| Operation Menu: | English |
Technical specifications
|
Spec. |
UTM-300C |
UTM-100C |
|
Max. load |
300kN |
100kN |
|
Load relative error |
≤±1% |
≤±1% |
|
Resolution |
0.01kN |
0.01kN |
|
Deformation accuracy |
±0.5%FS |
±0.5%FS |
|
Stretch space |
550mm |
550mm |
|
Compression space |
380mm |
380mm |
|
Clamping way |
Hydraulic automatic clamp |
Manual clamp |
|
Round sample clamping dia. |
φ6-26mm |
φ6-26mm |
|
Flat sample clamping thickness |
0-15mm |
0-12mm |
|
Flat sample max clamping width |
70mm |
70mm |
|
Shear sample dia. |
10mm(others optional) |
10mm(others optional) |
|
Upper lower platen size |
φ160mm(optional 204×204mm) |
φ160mm(optional 204×204mm) |
|
Bending support point Max. Distance |
450mm |
450mm |
|
Stretch test space |
450mm |
450mm |
|
Pump motor power |
1.1kW |
1.1kW |
|
Beam move motor power |
0.75kW |
0.75kW |
|
Main machine overall size |
720×580×1950 |
720×580×1950 |
|
Net weight |
1900Kg |
1900Kg |
