| Place of Origin: | Jiangsu |
| Brand Name: | SRI |
| Certification: | ISO9001-2008 |
| Model Number: | UTM-D |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 10000-15000USD |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 100sets/month |
| Oil Control: | Open Loop Manual | Load Rate: | Open Loop |
|---|---|---|---|
| Column: | 2 Or 4 | Data Output: | Printing Output |
| Clamping Way: | Automatic Hydraulic | Test Process: | Graphic Display |

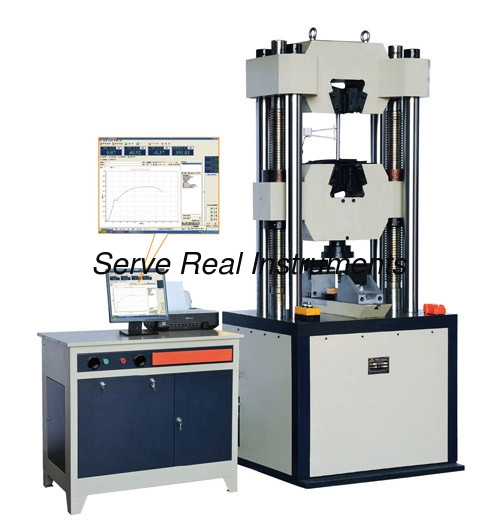

It is suitable for tension, compression, bending, shearing, peeling, tearing and other tests by adding different test fixture for metal and non-metal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.
Standards compliance
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards, can be tailor-made
Main specifications
| Model |
UTM- 100D |
UTM- 300D |
UTM- 600D |
UTM- 1000D |
UTM- 2000D |
||||||
| Structure | Four column Two ball screw | ||||||||||
| Control mode | constant stress, deformation, displacement, three closed loop control | ||||||||||
| Max. Load (kN) | 100 | 300 | 600 | 1000 | 2000 | ||||||
| Load range | 2%~100%F.S | ||||||||||
| Force resolution | 1/300000 | ||||||||||
| Load accuracy | ≤±1% | ||||||||||
| Test force resolution value (kN) | 0.01 | ||||||||||
| Deformation Measurement Range |
2% ～ 100% of extensometer measurement range |
||||||||||
| Deformation indication error | ± 0.5% of indicating value | ||||||||||
| Deformation resolution(mm) | 0.001 | ||||||||||
| Displacement Indication Error | 1% of indicating value | ||||||||||
| Displacement Resolution(mm) | 0.01 | ||||||||||
| Clamping Method(mm) | Hydraulic clamping | ||||||||||
| Control range of stress rate | 1MP/S-60MP/S | ||||||||||
| Adjust range of test strain rate | 0.00025/S-0.0025/S | ||||||||||
| Control range of displacement rate (mm/min) |
0.5-50
|
||||||||||
| Gantry adjust speed(mm/min) | 150mm/min | ||||||||||
| Max piston stoke (mm) | 250 | ||||||||||
| Max. Tensile Test Space(mm) | 650mm | ||||||||||
| Max.Compression Test Space(mm) | 500 | ||||||||||
| Round Sample Clamping Diameter (mm) | Φ6-Φ13 | Φ6-Φ26 | Φ13-Φ26 | Φ13-Φ40 | Φ20-Φ80 | ||||||
| Flat Sample Clamping Diameter(mm) | 0-15 | 0-15 | 0-15 | 0-30 | 0-60 | ||||||
| Clamping width of flat sample(mm) | 70 | 70 | 75 | 75 | |||||||
| Pressure Plate Size | Φ160/204x204(optional) | ||||||||||
| Bending Test Branch Roller Width(mm) | 140 | ||||||||||
| Roller distance of bending(mm) | 600 | ||||||||||
| Voltage | 380V/50Hz/3Phase(can be customized) | ||||||||||
| Overall Dimension(LxWxH)(mm) | 660×500×1800 | 740×580×2050 | 820×660×2250 | ||||||||
