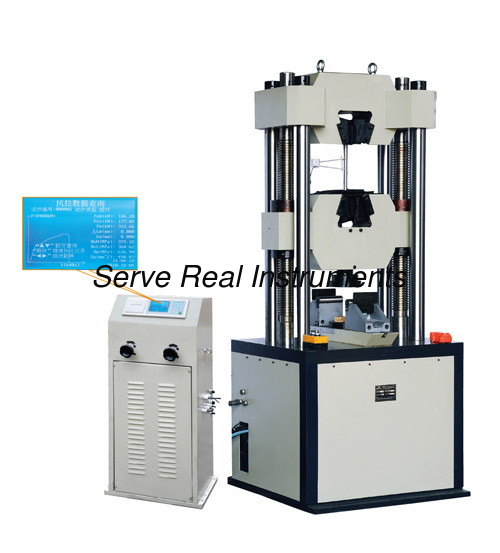

Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | Jiangsu |
| Brand Name: | SRI |
| Certification: | GB/T |
| Model Number: | UTM-B |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 8000-12000USD |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 100sets/month |
| Sea Port: | Shanghai | Warranty Period: | 12months |
|---|---|---|---|
| Power: | Electro Hydraulic | Clamping Way: | Manual Hydraulic |
| Oil Control: | Manual | Load Control: | Open Loop |
| Column: | 2 | Data Output: | Printing Output |
Technical specifications
|
Model |
UTM-100B |
UTM -300B |
UTM -600B |
UTM -600B |
UTM -1000B |
|
Max load |
100kN |
300kN |
600kN |
600kN |
1000kN |
|
Load measuring range |
4%~100%F.S |
||||
|
Testing load indicating value relative error |
≤±1% |
||||
|
Testing load resolution |
0.01kN |
||||
|
Tension test space(mm) |
550 |
550 |
650 |
650 |
750 |
|
Compression test space(mm) |
380 |
380 |
380 |
380 |
460 |
|
Clamping mode |
Manual |
Manual |
Manual/Automatic |
Automatic |
Automatic |
|
Round sample clamping diameter(mm) |
Φ6~26 |
Φ6~26 |
Φ13~40 |
Φ13~40 |
Φ13~40 |
|
Flat sample clamping thickness(mm) |
0~15 |
0~15(15~30optional) |
|||
|
Flat sample max clamping width(mm) |
70 |
70 |
75 |
75 |
75 |
|
Shear test sample diameter(mm) |
10 |
||||
|
Upper lower platen size(mm) |
204×204 |
||||
|
Supporting points max distance(mm) |
450 |
||||
|
Oil pump motor power(kw) |
1.1 |
||||
|
Beam lifting motor power(kw) |
0.75 |
||||
|
Net weight(kg) |
1600 |
1800 |
2000 |
2500 |
3200 |
Standard configurations
Main testing frame
Controller
Tension test fixtures*3sets
Bending test fixtures*1set
Power cables, Oil pipes
Operation manual
Certificate
